Ring Doorbell Not Chiming Inside? (Do This Now to Fix It!)

When your Ring Doorbell not chiming inside, it can leave you unaware of potential visitors or deliveries.

This problem often arises from wiring issues, an incompatible chime, or connectivity disruptions between the doorbell and your existing home system.

So, whether you have a battery-powered or a hardwired Ring Doorbell, keep reading further to discover expert solutions!

How to Fix When the Ring Doorbell Not Chiming Inside?

Note: Have you checked if the status of your battery-powered or hardwired Ring Doorbell says “Online” in the mobile application?

1. Reset the Doorbell & Chime Power(Battery & Wired)

A power insufficiency might be the reason why your Ring Doorbell refuses to chime inside, as both the doorbell and the existing chime installation rely on a stable electrical supply.

The power supply of a hardwired Ring Doorbell can be reset by temporarily setting the circuit breaker to “Off”, while battery-operated doorbells are reset by ejecting the batteries.

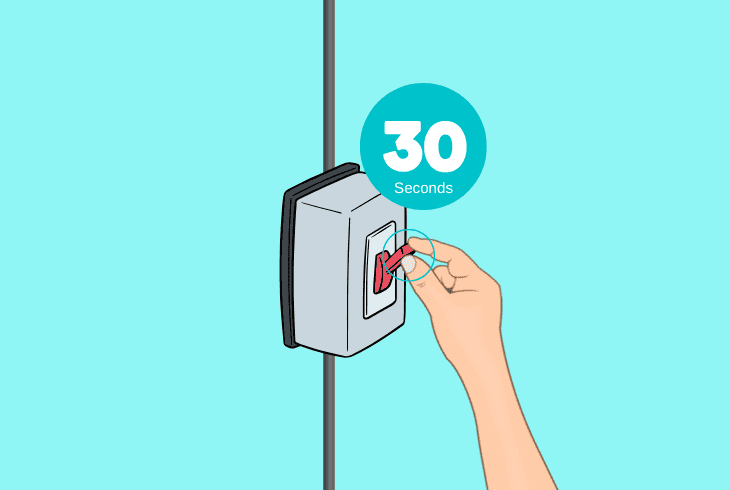

1.1 How to Reset Power for Hardwired Ring:

• First, locate the circuit breaker supplying your doorbell and chime.
• Turn off the breaker for 30 seconds to fully discharge the system.
• Next, turn the breaker back on and wait for the doorbell to reboot.
• Finally, check if pressing the doorbell activates the built-in Chime.

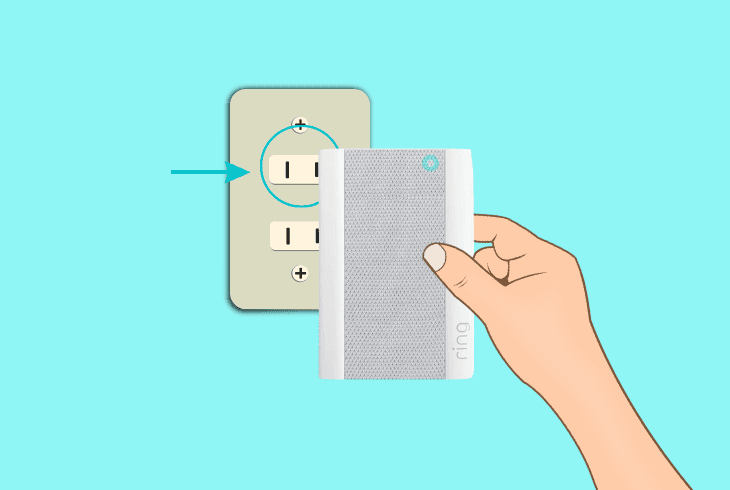

1.2 How to Reset Battery-Powered Ring:

• Disconnect the Ring Chime from the A/C outlet for ~30 seconds.
• Plug the Chime back into a working outlet and avoid power strips.
• Unmount the doorbell and take out the batteries from the socket.
• Wait ~45–60 seconds, reinsert the batteries, and turn on the Ring.
• Next, check if the doorbell is online in the Ring mobile application.

Note: Ensure the breaker or batteries of your Ring Doorbell provide sufficient power!

2. Verify the Ring Chime Compatibility (Wired)

If your Ring Doorbell is not ringing inside, the issue might be an incompatible chime, since Ring only works with specific mechanical and digital chimes.

This applies only to hardwired models, since they are hooked up to a transformer (8-24 VAC, 50/60Hz, 5VA-40VA).

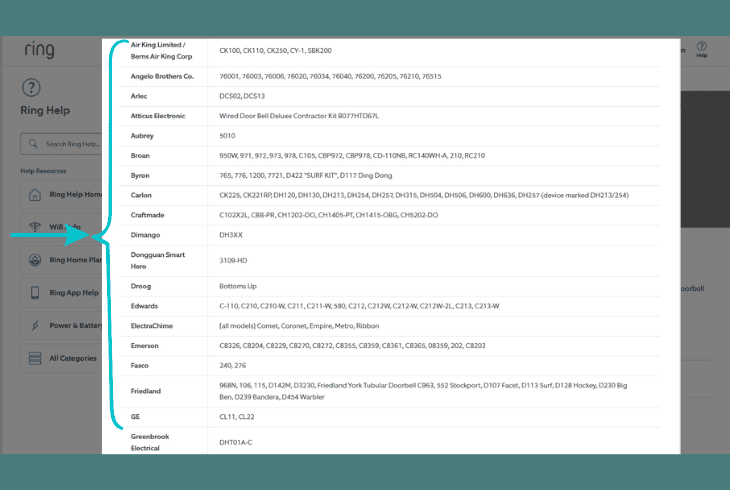

So, checking the compatibility of your chime according to Ring’s compatibility list ensures it can integrate with your existing chime system and meet the voltage requirements.

2.1 Ring-Compatible Mechanical Chimes:

• Adamax CMH1
• Air King Limited CK100, CK110, CK250, CY-1, SBK200
• Angelo Brothers 76001, 76003, 76006, 76020, 76034, 76040
• Broan 950W, 971, 972, 973, 978
• NuTone BK105, BK110NBWH, BK115LWH-1, BK120NBWH-1, BK125LWH-1
• Heath Zenith 95B-B, 32SN, DW-2735-02, SL-2735, SL-2796

2.2 Ring-Compatible Digital Chimes:

• Carlon DH840E
• Hampton Bay HB-7611-02, HB-7612-02, HB-7613-02, HB-7614-02, HB-7615-02
• Heath Zenith DC-3335, DC-3344, DC-3360, DC-3361, DC-3362
• Honeywell RCW250N1003, RCW3502N1003/N, RCW3504N1001/N
• IQ America DW1401A, DW1402A, DW2403A
• NuTone LA600WH

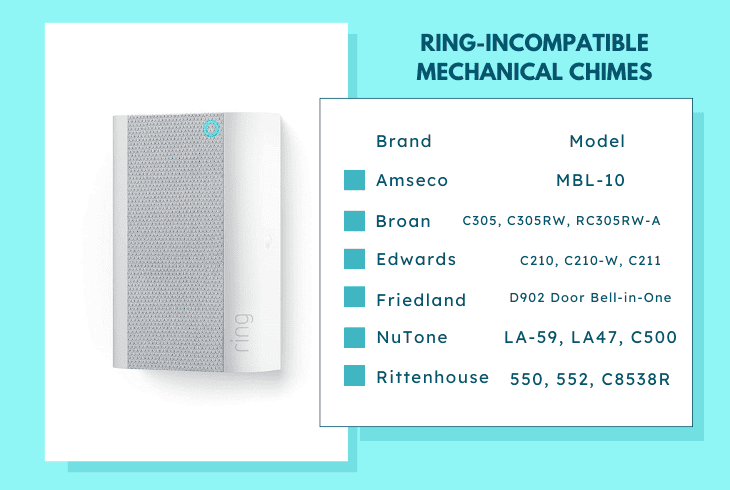

2.3 Ring-Incompatible Mechanical Chimes:

• Amseco MBL-10
• Broan C305, C305RW, RC305RW-A
• Edwards C210, C210-W, C211
• Friedland D902 Door Bell-in-One
• NuTone LA-59, LA47, C500
• Rittenhouse 550, 552, C8538R

2.4 Ring-Incompatible Digital Chimes:

• Aiphone ChimeCom2, CCS-1A, CC-1M
• Edwards Signaling 6536-G5 Horn Strobe
• Friedland E821 Quartet, E851 Serenade, CE861 Orchestra
• Heath Zenith SL-6182-C, SL-6166-RX-A, 6168RX
• NuTone IM-3303, IM-4406, IM-5006
• Nicor 18888, 18888SB

Quick Note: Those are the most popular but not all compatible chimes, so feel free to explore the official Ring source

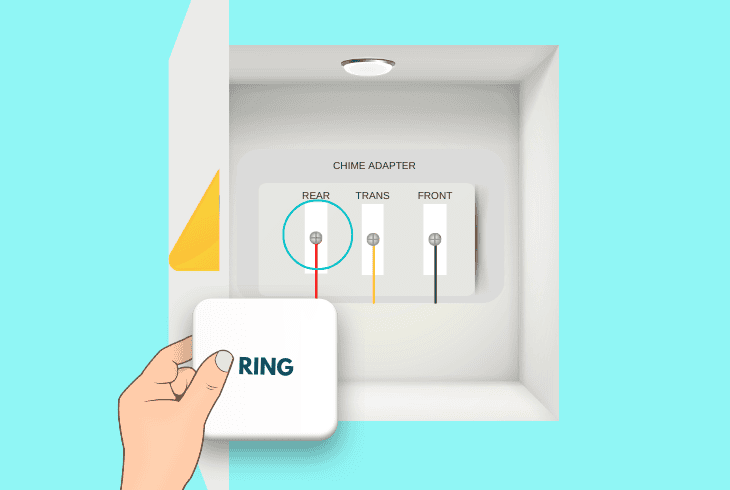

3. Check the Ring Chime Kit Installation (Wired)

If your wired Ring Doorbell fails to activate the existing chime, then you are certainly missing the Ring Chime Kit, or the leads have been connected improperly.

Although the wired Ring Doorbell is designed to work flawlessly with an existing chime (as long as it is compatible), the unfiltered voltage may sometimes cause functionality issues.

The purpose of the chime kit (adapter) is to stabilize the input voltage of the doorbell and chime!

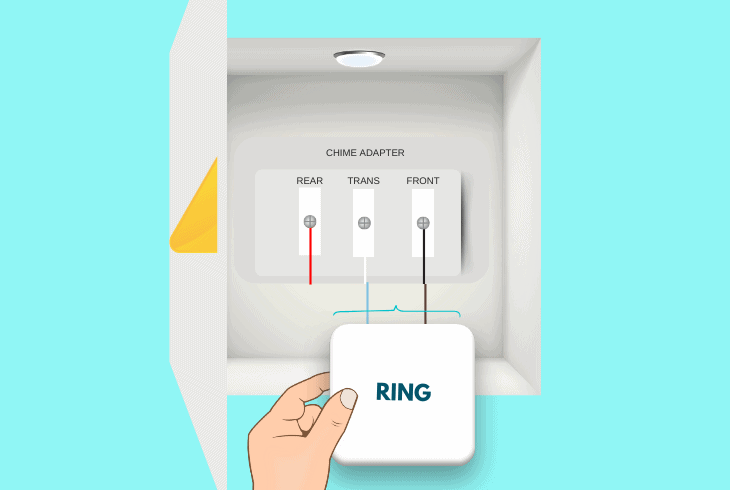

Here’s how to check the Ring Chime Kit installation:

• Turn off the power supply at the circuit breaker.
• Remove the chime cover to access the wiring.
• Now, locate the “Front” and “Trans” terminals.

Now, inspect the following connections:

• Check the black wire: clipped to “Front,” brown end in “Front” terminal.
• Check the white wire: clipped to “Trans,” blue end in “Transformer” terminal.
• Secure the Pro Power Kit and avoid any moving parts.
• Place the cover on, restore power, and test the chime.
• Confirm the doorbell and chime are paired in the app.

Can My Ring Doorbell Work Without the Chime Kit?

Without the Pro Power Kit, a wired Ring Doorbell may not receive enough power to function reliably or activate the existing chime of your installation.

So, if you lack a compatible chime, consider using a plug-in Ring Chime device or rely on the app notifications for alerts instead.

4. “System Reset” the Ring Chime Unit (Battery)

If the Ring Doorbell is not ringing inside, the Ring Chime might be experiencing a software issue, rather than the doorbell itself.

Hence, resetting the Ring Chime to factory defaults can reboot the system to restore functionality and ensure it is connected to the chime.

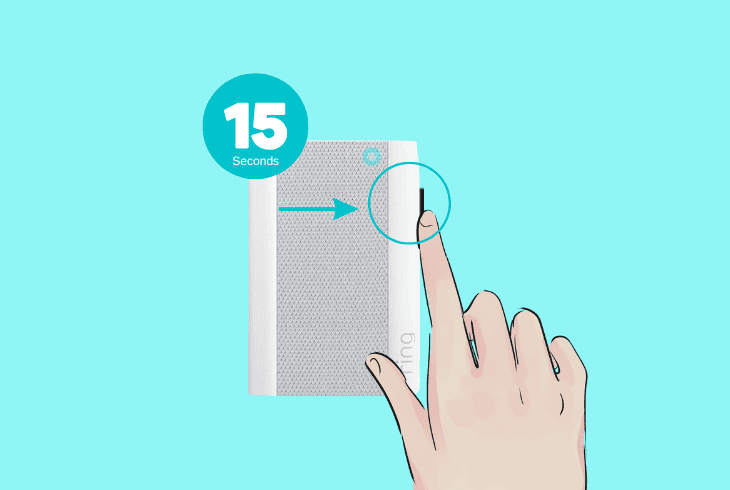

4.1 How to Perform a Basic System Reset:

Find the Reset button on the side of the Ring Chime (2nd Gen), press and hold it for about ~15 seconds, then release once the front light begins to flash.

Note: It may be green, blue, or another color, and wait until the green flashing light appears, signaling it’s ready to pair.

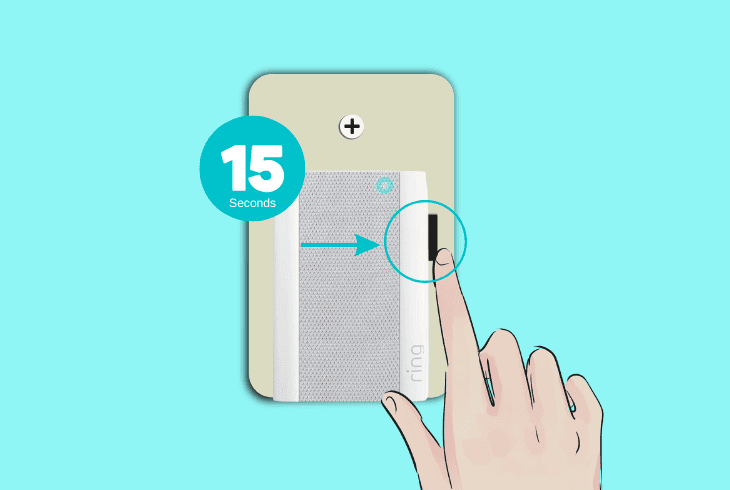

4.2 How to Perform a Full Factory System Reset:

First, press and hold the Reset button on the side with a paperclip, plug the Chime into a power outlet while holding, keep the button pressed for 15 seconds after plugging in, then release and wait for the Chime to enter setup mode with a green flash.

Alert: Avoid unplugging or replugging the Chime until the 15-second hold is complete.

5. Inspect the Ring Terminal Connections (Wired)

The wiring of your Ring Doorbell might not be completing the circuit with the chime due to loose or damaged terminal wires.

A wired Ring Doorbell requires two wires—a power wire from the breaker and a “TRANS” wire for the chime to function properly, so inspecting these terminals can resolve any power issues.

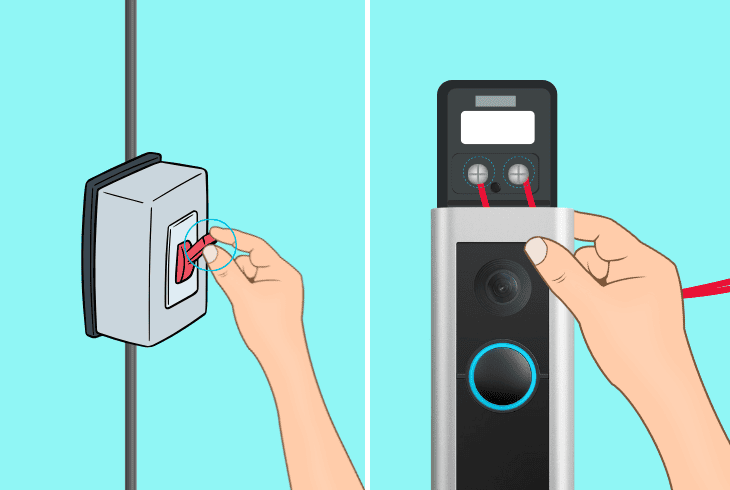

Here’s how to inspect and verify the terminal wires of your Ring:

• First, switch off the circuit breaker to safely work on the doorbell.
• Now, detach the Ring Doorbell faceplate from the mounting bracket.
• After that, find the terminal screws on the bracket holding the wires.
• Inspect the wires for wear or any damage and tighten them securely.
• Reattach the faceplate, turn the breaker back on, and test the chime.

Note: Get in touch with a technician if any of the wires appear to be loose or corroded.

6. Clean the Ring Chime Unit Housing (Wired)

Alert: This step applies only to mechanical chimes, as debris can interfere with the hammer and bell mechanism.

If the doorbell is still refusing to chime indoors, any dust or debris inside the mechanical chime unit housing might be obstructing the moving components.

Cleaning the housing can ensure the chime functions properly with your hardwired Ring Doorbell system.

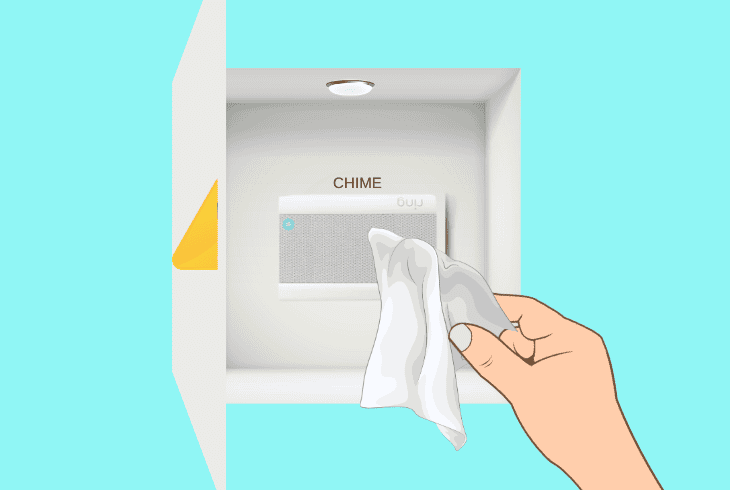

Follow these steps to inspect the existing doorbell chime:

• First, turn off the circuit breaker to safely access the chime unit.
• Remove the chime cover to expose the internal hammer and bell.
• Use a soft, dry cloth to gently clean the components of the chime.
• Inspect the hammer and bell for wear or stuck debris and clear it.
• Reinsert the chime cover, restore power, and test at the doorbell.

Note: Clean the chime housing periodically to avoid the buildup of dust or debris.

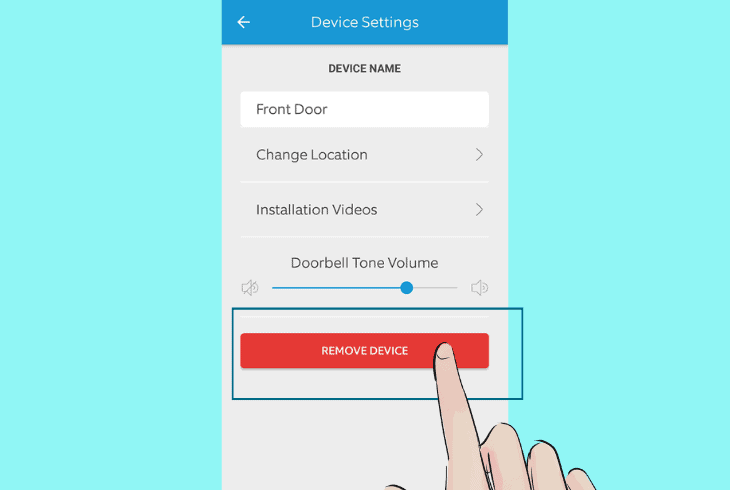

7. Re-add the Ring Doorbell From the App (Wired & Battery)

A registration error might be disrupting the Ring doorbell’s connection to the application, which can affect how the doorbell communicates with your existing system chime or your Ring Chime.

So, “deregistering” and re-adding the doorbell through the Ring application can resolve system issues and restore the functionality of your system.

Here’s how to deregister your wired or battery-powered doorbell:

• Open the Ring app and go to the main dashboard.
• Press the three-dot menu on your Ring Doorbell.
• Select “Device Settings” to view the extra options.
• Go to “General Settings” from the available menu.
• Tap “Remove Device” to begin the deregistration.
• Confirm by selecting “Delete Events” in the section.
• Re-add the Ring doorbell by selecting “Add Device”.

Note: An unstable Wi-Fi connection during re-registration might impact chime performance, so verify the network status after setup.

8. Replace the Existing Chime Transformer (Wired)

A weak or defective transformer may be why the Ring Doorbell not chiming inside.

Well, the transformer might be delivering less than the required 16–24V AC (8V minimum is often not enough) to power the doorbell and trigger the in-home chime.

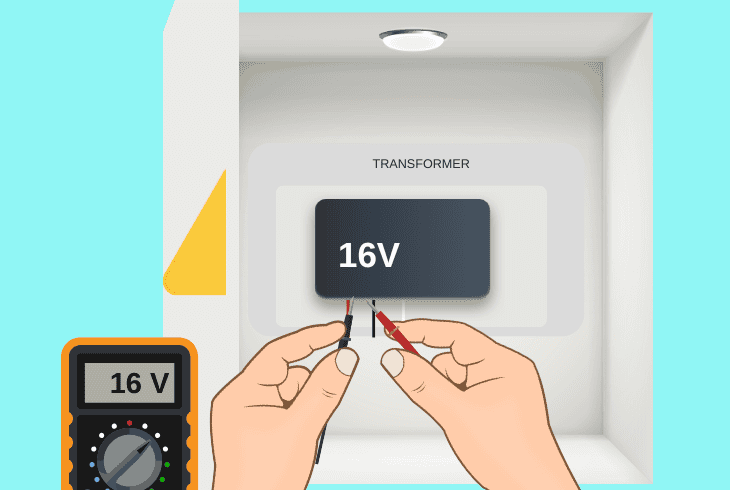

To test the voltage: Turn off the breaker, locate the AC transformer near the chime, set a multimeter to AC voltage, connect the probes to the transformer, and check if the reading is 16–24V AC.

Here’s how to replace the transformer if the readings are below the minimum:

• Acquire a 16V or 24V 30VA transformer compatible with your Ring.
• Disconnect the power and remove the wires from the old transformer.
• Reconnect the new transformer to the existing system wiring securely.
• Mount the new transformer, power it on, and test at the Ring doorbell.

Note: If you’re unsure about replacing the transformer, contact a licensed electrician or Ring support for more assistance.

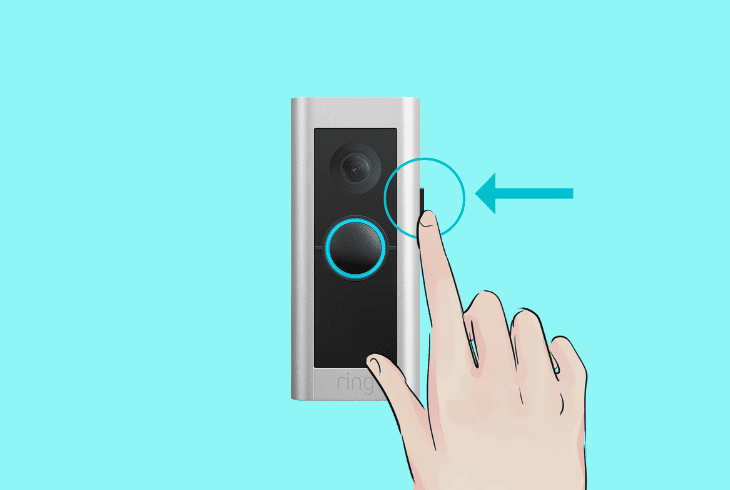

9. Factory Reset the Ring Doorbell (Wired & Battery)

A factory reset might resolve underlying software issues with the Ring Doorbell by erasing all settings, like Wi-Fi and motion zones.

The reset process differs slightly: Ring 1 has an orange button on the back, while Ring 2 has a black button on the front.

• Locate and hold the Orange (Ring 1, back) or Black (Ring 2, front) button for 20 seconds.

• Release when the LED flashes, wait for the reset to complete, then set up the doorbell again.

Note: Verify the doorbell is securely connected to the Wi-Fi before and after the reset.
