Epson Projector Beeping? (Don’t Panic, Easy Fix!)

Are you confused by the Epson projector beeping? Don’t panic, the solution is straightforward!

The persistent beeping noise produced by the Epson projector is often caused by the installation of an unoriginal or aftermarket bulb in the projector’s bulb shaft.

All replacement bulbs for your projector must be provided specifically by Epson, as they are designed to function on the same frequency as the ballast of the projector (bulb PCB.)

However, there are other simple ways to address the issue, so proceed with the guide!

How to Fix Epson Projector Beeping – 6 Working Solutions!

Note: Have you checked if the beeping goes away after not interacting with the receiver?

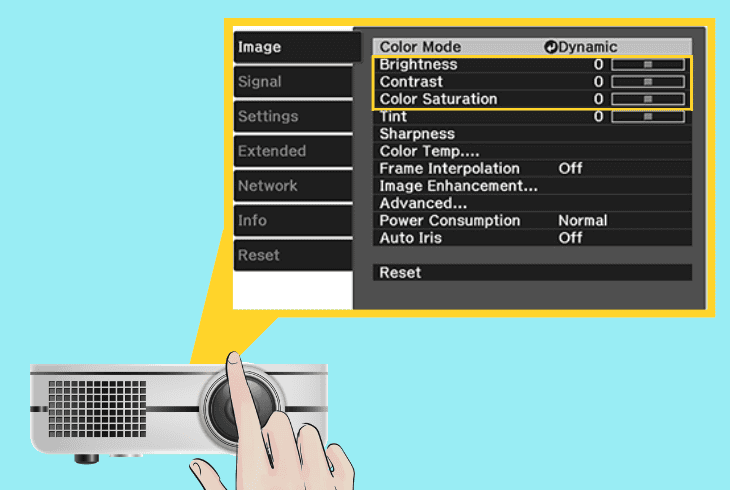

1. Exit the Epson Projector’s “ECO” Mode

The first step is to ensure your Epson projector hasn’t entered the “ECO” brightness mode.

The projector has several functionality modes, ruled out by the current configuration of the brightness intensity, which directly impacts the bulb and could lead to the consistent beeping.

This specifically applies to aftermarket bulbs installed in your projector or potential issues with the bulb’s ballast.

Follow these steps to adjust the projector’s brightness and exit “ECO” mode:

1. Press the “Menu” button on the Epson remote control.
2. Navigate to “Image” and press “Enter” on the remote.
3. Select “Brightness” from one of the on-screen options.
4. Use the Left arrow to reduce the brightness intensity.
5. Set the feature above 50% and exit the configuration tab.

The intensity of the brightness defines the current power mode your Epson receiver is in.

If the brightness is set below 50%, the projector will automatically enter “ECO,” and if it’s above 50%, it will be another mode.

2. Discharge the Power Supply of the Epson

Before proceeding with more thorough solutions for the Epson projector beeping sound, we recommend a clean power cycle to discharge the unit from power.

It takes between 30 and 45 seconds on average for your Epson projector’s hardware to drain entirely, which can effectively address underlying issues with the functionality.

Follow these steps to perform a power discharge on the Epson projector:

1. Press the “Power” button on the top panel of the projector.
2. Wait until the unit shuts down and unplug the power cable.
3. Hold the “Power” button for ~10–15 seconds for discharge.
4. After approximately ~30 seconds, plug your Epson back in.
5. Then turn on the projector and check if the beeping persists.

How do you detect power issues with the Epson Projector?

While inspecting the power of the Epson projector, we also recommend checking simple things regarding the supply such as the functionality of the wall outlet and the adapter’s condition.

If your projector powers off or reboots periodically, try the following:

• Plug your Epson projector into a different wall outlet.
• Remove third-party equipment from the installation.
• Check if the power adapter is secured on both ends.

Tip: Try to spot any visual hardware damage during the power adapter’s inspection!

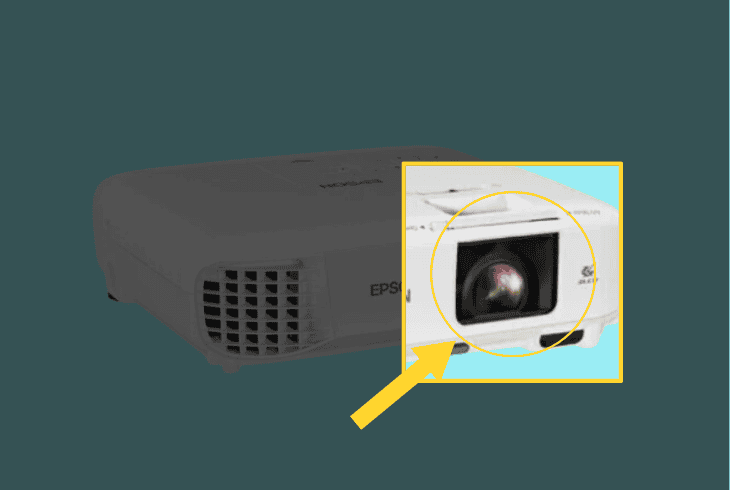

3. Tighten the Projector’s Bulb Shaft

Well, replacing your projector’s bulb and not tightening the bulb compartment could result in consistent and uninterrupted beeping until further notice.

That’s why the next step is to take the top panel of the Epson projector apart and thoroughly check the bulb compartment’s installation.

Here’s how to access the lamp shaft of your Epson projector:

1. Unplug the projector’s power and wait until the device cools off.
2. Remove the lamp shaft’s screws from the side of the projector.
3. Gently remove the cover to expose the bulb compartment inside.
4. After that, find the screws holding the bulb compartment in place.
5. Use a compatible screwdriver to tighten all the screws of the shaft.
6. Check if the shaft can be easily moved and test the projector’s bulb.

While the goal is to tighten the compartment, you should not overdo the screws as this could wear out the shafts easier.

Hence, ensure each of the screws is moderately tightened and the compartment stays in place while moving the projector around.

Warning: A loose bulb connection could lead to internal hardware issues with the projector!

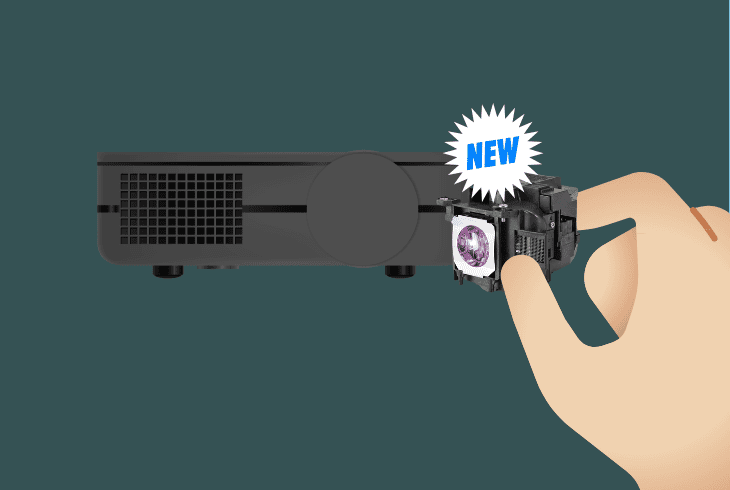

4. Mount the Projector’s Original Bulb

Installing an unoriginal bulb in the Epson projector’s bulb shaft could fail to match the lamp driver (ballast)’s output frequency and result in a consistent beeping or alarm-like noise.

So, even if the original bulb is burned out, we recommend placing it back on your projector to determine if the beeping will persist.

Follow these simple steps to replace the Epson projector’s lamp:

1. Turn off the projector and unplug it from the power supply.
2. Wait until the projector fully cools down (30–45 minutes).
3. Use a screwdriver to undo the lamp shaft’s plastic cover.
4. Gently slide the lamp cover off until it is loose from Epson.
5. Loosen the screws holding the lamp’s panel on the inside.
6. Pull the safety strip upwards and remove the lamp panel.
7. Grasp the raised section of the panel to remove the bulb.
8. Place the old bulb of your projector back into the bulb slot.

If your projector’s beeping stops upon installing the old lamp back in, purchase a brand-new replacement from Epson’s official website to prevent any future beeping.

Warning: Most projector lamps include mercury, which can be against some of the disposal regulations. Consult with the local regulations regarding the new or old lamp’s disposal or recycling.

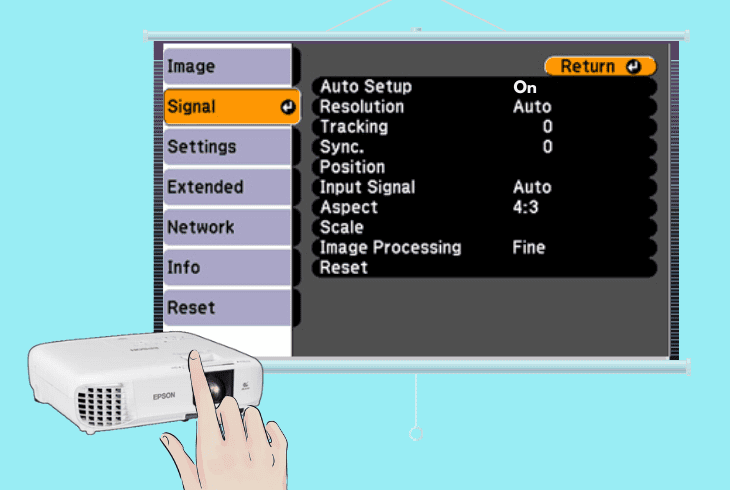

5. Reset the Projector to Factory Defaults

In some cases, the beeping noise produced by the Epson projector is related to an internal fault with the system that can be effortlessly addressed with a factory reset.

Keep in mind that all of your projector’s system and user settings will be restored to defaults after the procedure.

Here’s how to perform a factory reset on the Epson projector:

1. Press the “Home” button on the Epson remote control.
2. Select the settings icon in the upper right of your TV.
3. Head to “Device Preferences” and navigate to “Reset.”
4. Once the confirmation screen appears, press “Enter.”
5. Wait until the factory reset of your Epson device begins.

Alert: Wait for a minimum of several minutes before interacting with the projector after the reset.

6. Replace the Projector’s Ballast Lamp (Advanced)

A faulty ballast could lead to the periodical Epson projector beeping, due to a frequency mismatch with the bulb.

Unlike a simple bulb replacement, installing a new bulb board (ballast) may take some extra technical expertise, as it involves accessing the internal hardware of the projector.

If you’re uncertain whether you can do this by yourself, it’s best to consult on terms of your projector’s warranty (if it’s active) or seek assistance from a qualified third-party technician.

Alert: A full disassembly of your Epson projector will result in a warranty void!

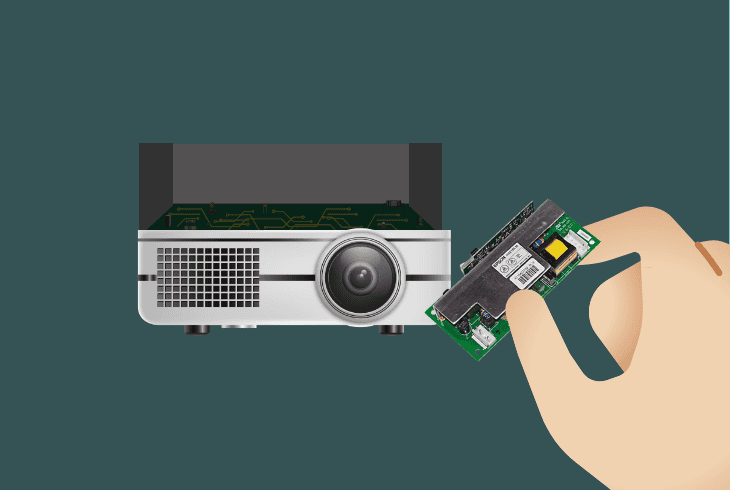

6.1 How to Access & Remove Epson Ballast?

1. Unplug the projector and allow the device to fully cool off.
2. Remove the bulb shaft’s screws and uninstall the bulb.
3. Remove the air filter from the back of the Epson projector.
4. Open the case by undoing the screws underneath the filter.
5. 7 screws from the bottom and 5 screws from the rear panel.
6. Disconnect the ribbon cable attached to the LEDs of the case.
7. Carefully detach the lamp area bezel held by 3 other screws.
8. Gently move the fan and the vent out of the receiver’s board.
9. Unscrew the lamp ballast found right under the vent’s position.
10. Disconnect the ballast and pull it out from the Epson projector.

6.2 How to Replace Epson Projector Ballast?

Once you’ve taken the current ballast out, have a thorough look at it and try to spot blown capacitors, burnt areas, or visual hardware damage.

Then, locate the OEM projector ballast compatible with the exact model of your receiver online.

Reminder: Keep in mind that replacement ballasts aren’t cheap and aren’t offered directly by Epson themselves.
