Valve Index Base Station Blinking Red? (Let’s Fix It Fast)

It could be really annoying when your Valve Index base station is blinking red–but don’t panic!

This indicates the base station is no longer recognized by SteamVR and therefore the digital boundaries have ceased to exist.

In either case, your base station’s power supply and positioning are the ones to blame, but you should keep in mind that the blinking red light can also indicate a fatal hardware default.

While many users suggest that there is no fix for the blinking red light on your Valve Index, there are a couple of things to try before sending it in for RMA.

How to Fix the Valve Index Base Station Blinking Red?

Note: All Valve has to say about the red flashing light on your base station is that “The Base Station has encountered an error. Get in touch with Steam Support”.

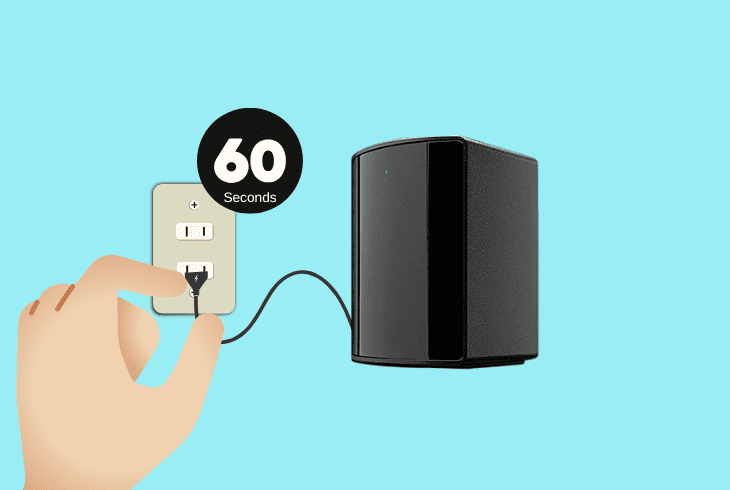

1. Power Cycle the Base Station

You should start with a simple power cycle of the base station.

Although this may not sound like a lot, discharging the power supply could eliminate underlying faults with the base station and eliminate the red light in the process.

• To power cycle the base station, unplug the power cord from both ends and wait for a total of 60 seconds.

After roughly a minute has elapsed, reseat the power cord and wait for your base station to turn on.

If the base station’s functions are restored, the indicator will illuminate in solid green, and the infrared lasers will be reactivated.

2. Adjust the Channel Configuration

Tweaking the channel configuration settings of the Valve Index is a practical, yet highly effective solution for unexpected errors with your equipment.

The red light can come on during a channel conflict and your Valve Index base station could show a “Setup Error” for as long as it remains.

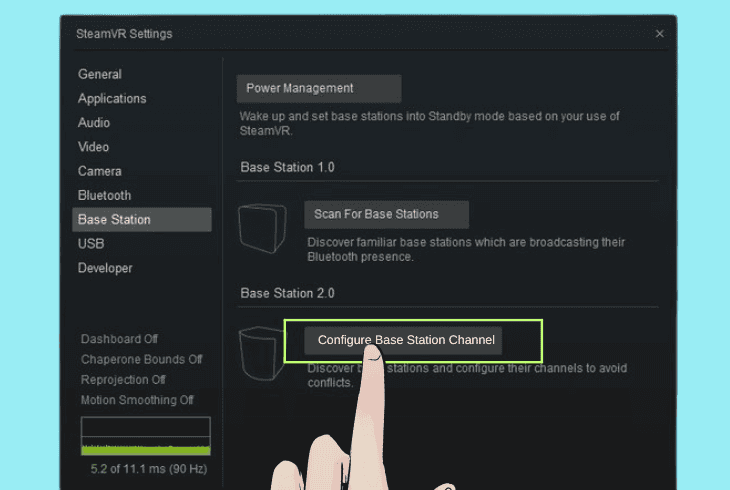

Here’s how to adjust the Valve Index’s channel settings:

1. Launch the SteamVR app and go to “Devices”.
2. Click “Base Station Settings” from the category.
3. Next, go to “Configure Base Station Channels”.
4. Enable “Automatic Configuration” from the page.

With the channels set to automatic, you can minimize the amount of channel interference and conflicts, which could be the culprit behind the red light on your base station.

Quick Tip: We recommend setting the headset’s channels to “Automatic” for optimal tracking.

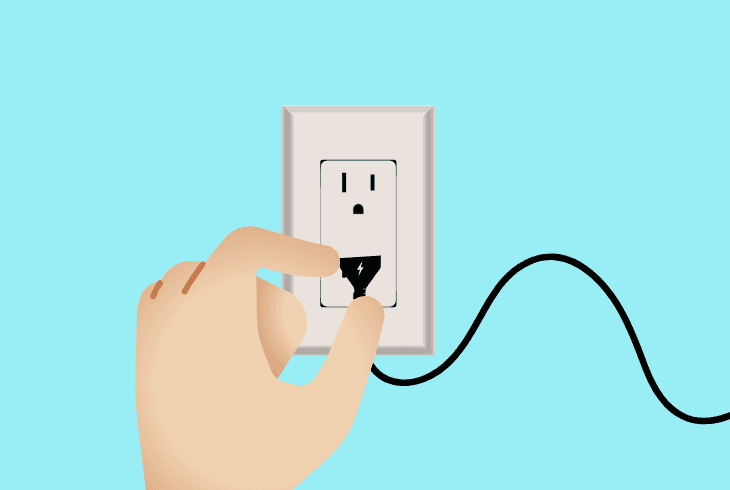

3. Switch to a Different Power Outlet

One of the potential reasons to inspect when a Valve Index base station is flashing red is the wall outlet and the voltage output.

So, for the next step, we recommend connecting the base station directly to an alternative power outlet, without including any third-party equipment in the setup.

To check whether the base station’s previous outlet is defective, feel free to use a multimeter or connect another electrical appliance to observe the power behavior.

Warning: If the base station powers off frequently, there will be consistent play area distortions!

4. Relocate your Index Base Stations

As clarified in the Valve Index’s setup instructions, there must be a base station in each of the opposing corners of your room.

Not positioning the stations correctly could result in a fault with the play area and thus, a persistently blinking red light.

Here are some tips for proper base station positioning:

Ensure a Line of Sight

Both of the base stations must be angled downward for proper tracking and must be positioned away from reflective surfaces, mirrors, or direct sunlight to have a clear line of sight.

Securing the Mounting

Another essential step is to secure the base station’s mounting by using tripods, stable shelves, wall mounts, or anything that could prevent vibrations or movement.

Dislocate Obstructions

Ensure the base station’s point of view is not covered by a large obstruction and check if there’s a buildup of dust on the surface of the infrared sensors.

Also, check if anything is blocking the infrared sensors’ POV and interfering with the digital boundaries within SteamVR.

Important: We recommend using a microfiber cloth and rubbing alcohol to clean the sensors!

5. Disable SteamVR “Power Management”

If the base station is still visible through SteamVR on your PC, then you should deactivate the “Power Management” feature through SteamVR.

• While “Power Management” is disabled, the base station will remain powered on, as long as it is plugged in.
• While “Power Management” is enabled, your base station will enter a “Standby” mode, turning it on while in use.

Note: The feature could confuse the functionality status of the base station and cause it to enter hibernating states that are bad for the internal battery.

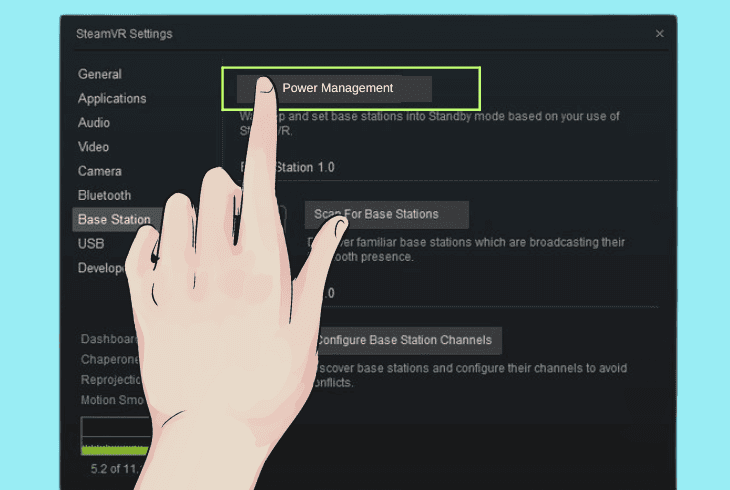

How to Turn Off “Power Management” On SteamVR?

1. Start the Steam launcher and open SteamVR.
2. Next, navigate to “Settings” → “Base Station”.
3. Click on “Power Management” in the options.
4. Set the feature to “Off” and save the changes.
5. Now, exit the tab and inspect the base station.

The power management could cause issues with the Valve Index if you use shared tracking space with several instances of SteamVR running.

In such a case, it’s important to disable the feature to avoid conflicts between the power states.

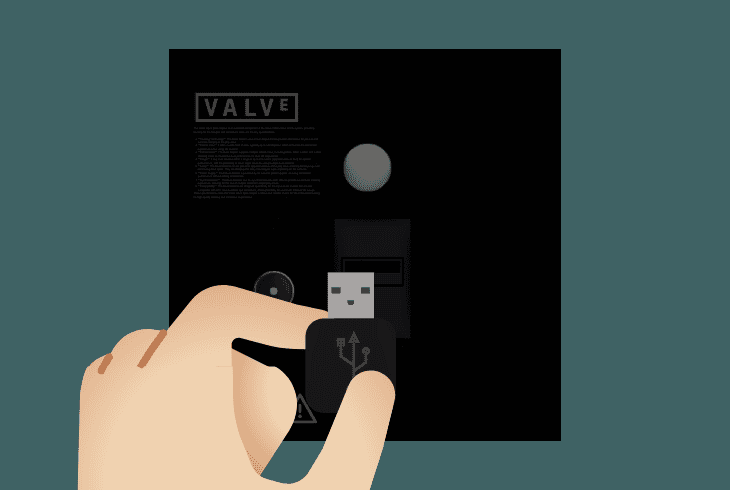

6. Inspect the Base’s Power Setup

The Valve Index station’s setup consists of two components–a base station 2.0 AC adapter and an electrical cable.

• The cable uses unique barrel ports, so you can only purchase a replacement for the adapter or power cable through Valve.

There is no possible way to test with alternative equipment, due to the unique connectors of the equipment.

However, here’s what you can do:

• Verify the connection between the outlet and the adapter.
• Verify the connection between the adapter and the cable.

These two connections are essential for the charging and functionality of your base station.

Testing the base station’s dedicated charging equipment with a multimeter might be complex, so check if there’s any damage to the adapter or the power cable.

Note: In case of a defect with the equipment, reach out to Valve’s customer support for an RMA and a replacement.

7. Factory Reset your Valve Index

Your headset and base stations need to be consistently synchronized to function properly and host your play area.

The red light on the base station could be indicating a fault in the headset itself, rather than a problem with the station.

If so, we recommend a factory reset to erase all settings of the Valve VR.

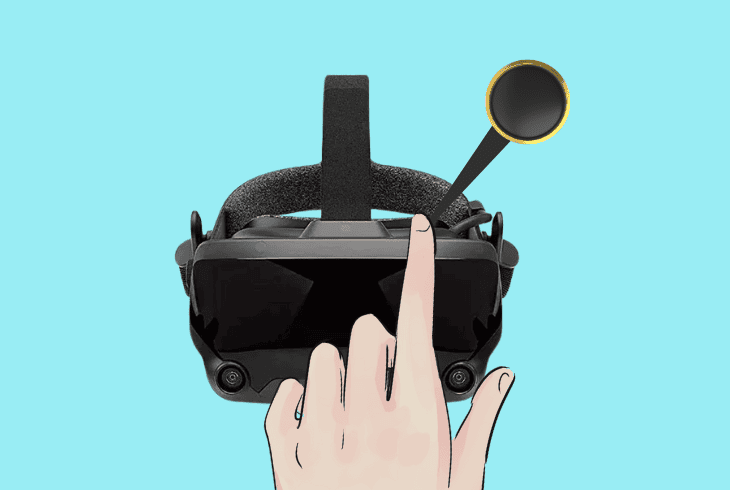

Here’s how to factory reset the Valve Index easily:

1. Unplug the Valve Index from your PC’s panel.
2. Hold the “System” button on the headset unit.
3. Reconnect the headset while holding “System”.
4. Release after the headset’s LED turns green.
5. Wait until the headset’s factory reset is finished.

Warning: Do not power off or interact with the headset in any way during the factory reset.

8. Flash the Base Station’s OS (Advanced)

If the Valve Index base station is blinking red, and you’re still having problems with the tracking, there is one last thing you can try–an OS recovery suggested by Valve support.

You can find the base station firmware files in the SteamVR’s installation directory.

The method involves “flashing” the “rescue” and “standard” firmware files of the base.

For this purpose, you will need a micro-USB cord and your PC with the SteamVR app installed.

Alert: Only proceed with the steps if your base station isn’t working, since flashing the firmware while the device is functional may cause issues by itself.

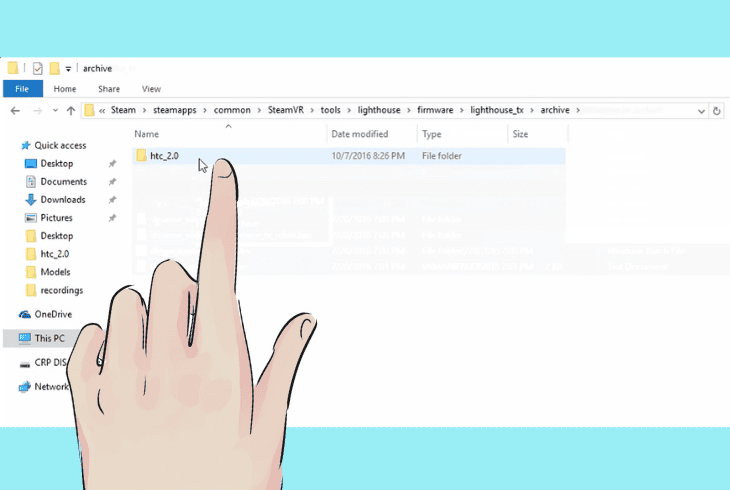

Step 1: Locate the Firmware Files

1. Open your PC’s File Explorer and go to:

• C:\Program Files (x86)\Steam\steamapps\common\SteamVR\tools\lighthouse\firmware\lighthouse_tx\archive\htc_2.0

2. Then, you need to find the following files:

• lighthouse_tx_htc_2_0-calibration-rescue-244.bin
• lighthouse_tx_htc_2_0-244-2016-03-12.bin

3. Copy and paste these files on the desktop.

Step 2: Flash the Rescue Firmware

1. First, power off the Valve Index base station.
2. Connect it to your PC via a micro-USB cable.
3. Hold the Mode button, then plug in the power.
4. Release the mode button of the base station.
5. Now, open the PC’s File Explorer tab again.
6. Search for the (CRP_DISABLED) USB path.
7. Access the drive and scroll through the logs.
8. Delete the file “firmware.bin” from the drive.
9. Copy lighthouse_tx_htc_2_0-calibration-rescue-244.bin to the drive.
10. Unplug the power, and wait a few seconds.
11. Check if the base station blinks green or red.

ALERT: If the base station keeps blinking red after flashing the first file, contact Valve support!

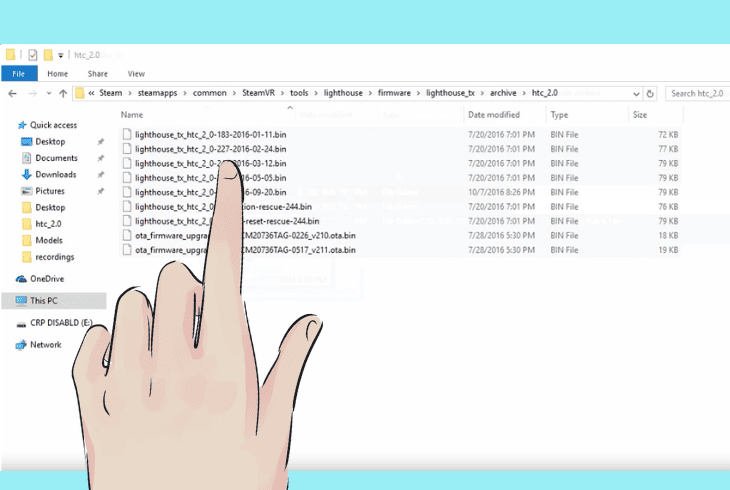

Step 3: Flash the Standard Firmware

• Repeat the instructions in step 2, but this time use lighthouse_tx_htc_2_0-244-2016-03-12.bin instead of the rescue firmware.

• Once completed, unplug and reconnect the power.

Step 4: Confirm Functionality

• Reconnect the base station to the power supply and allow it to turn on for several seconds, before checking the LED indicator.

If the base station’s OS was updated successfully, the indicator should illuminate in green right after the device is turned on.

If the red light is still there, there’s probably a hardware fault with the base station, so get in touch with Valve Customer Support for RMA.

Important Info: The OS recovery works on both the 1.0 and 2.0 Valve Index base stations!
