How To Connect Reolink NVR To WiFi? (Step by Step Guide)

If you’re struggling and don’t know how to connect Reolink NVR to WiFi, don’t look further and stay with us.

The internet setup of your Reolink NVR is essential to manage your security system and all devices participating in it.

This guide will expand on how to deliver internet to your NVR and acquire access to the live feed of your cameras in an in-depth tutorial.

Let’s start by asking…

Can Reolink NVR Connect to WiFi?

Unfortunately, neither of the Reolink PoE NVR models supports the Wi-Fi function and requires a wired Ethernet connection.

The Reolink PoE cameras participating in your security system however can, in fact, pair wirelessly with the NVR and receive internet from there.

All footage recorded by the security cameras will then be transferred to the NVR’s storage and become viewable by the user shortly after, through the supplied monitor interface.

Before proceeding with the NVR’s internet setup, please ensure the monitor is wired properly and you can access the NVR’s interface.

That’s essential during the system and is also required to set up the cameras.

How to Connect Reolink NVR to WiFi? – Step-by-Step Tutorial!

Note: Verify the NVR is positioned, connected to power, and ready to go!

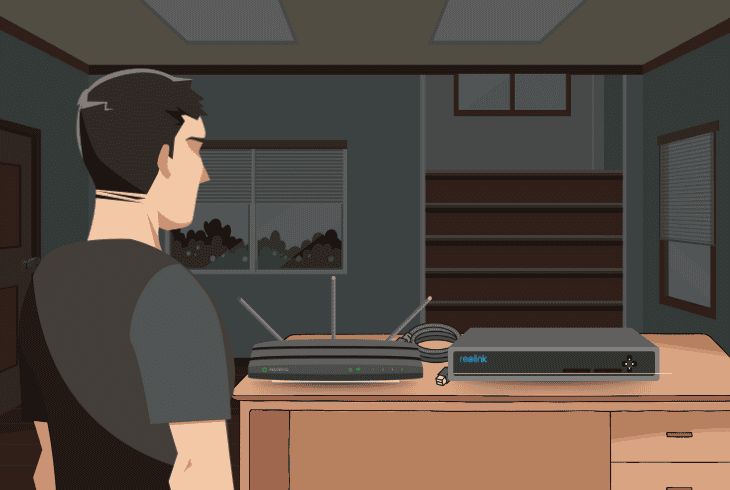

1. Prepare the Setup Equipment

Before connecting the NVR to the internet, ensure you have all of the necessary equipment for wiring up the system.

You will need the following:

Once you have all of that, you can proceed with the next step to begin the physical installation.

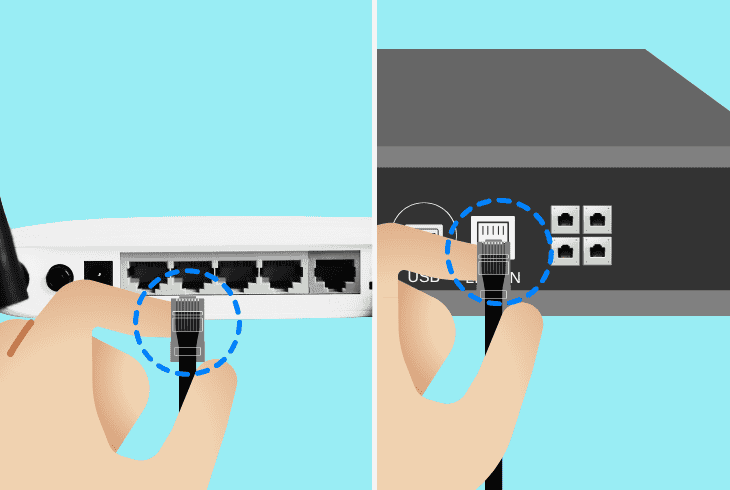

2. Connect the NVR’s Ethernet

Proceed to connect an Ethernet cable to the “LAN” port on your NVR and the other end into one of the yellow ports on the router.

You can verify if the connection was a success by checking the DHCP list of your router.

Most modern routers have a mobile application, so you should check this.

However, if yours doesn’t, use the default gateway to access the web GUI.

3. Complete the NVR’s App Setup

To add cameras over Wi-Fi, the NVR must be set up through the mobile app.

To download the app, open the app store of your smartphone and search for “Reolink”.

Follow these steps after installing the app:

1. Enter the Reolink app and tap on the plus icon above.
2. Allow the Reolink app access to your phone’s camera.

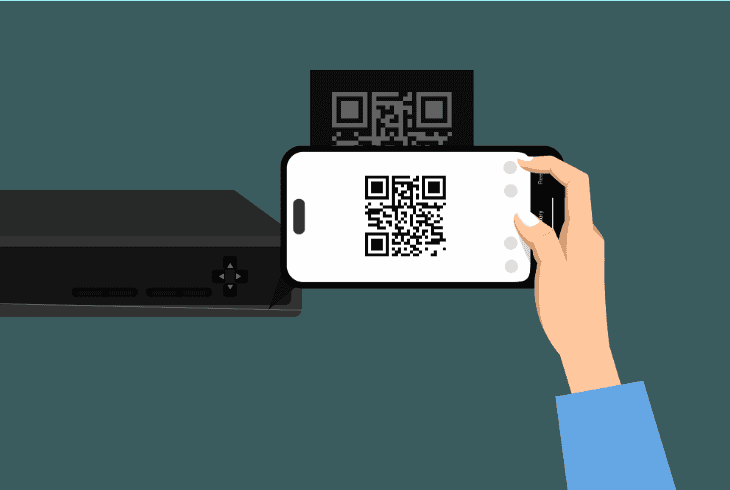

3. Locate and scan the QR code on the panel of the NVR.
4. Create an admin password to access the NVR settings.
5. Tap “Next” and write down a name for your Reolink NVR.
6. Now, head to “Camera” to start managing your live feed.

This was all about how to connect Reolink NVR to internet. Keep reading to find out how to set up the Reolink cameras!

How to Pair Reolink Cameras to NVR Over Wi-Fi?

With the release of Reolink’s new NVR interface, the wireless-protected setup of the Reolink is a little different.

To employ the camera, you must ensure that it is installed and powered on before completing the setup instructions through the Reolink mobile app.

Note: Verify the Reolink app’s cache is clear and that the device has the latest OS!

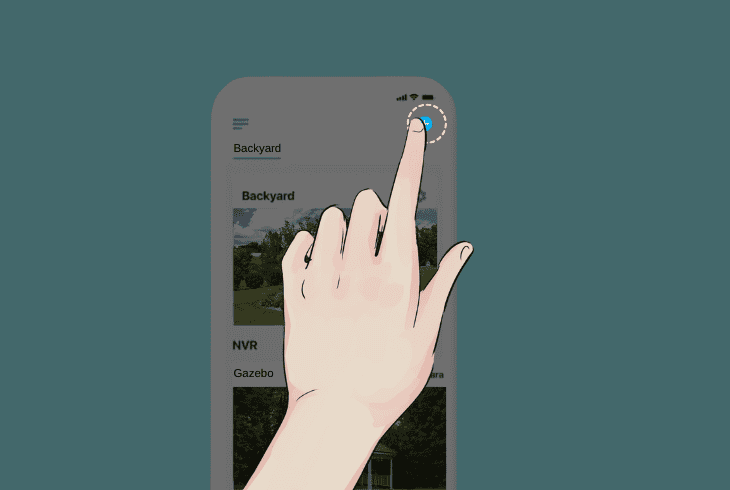

Method #1 Add Cameras Automatically

For the automatic setup procedure to work, ensure your mobile device is on the same network as the Reolink NVR.

For starters, deactivate the “Mobile Data” feature in the settings of your phone so it doesn’t take priority over the Wi-Fi connection.

Then, head to “Settings” → “Wi-Fi” and connect with the 2.4 GHz or 5 GHz thread of the Wi-Fi.

Once you’ve done all of that, follow these steps:

1. Open the Reolink app and tap on the plus symbol.
2. Tap on “LAN” and wait until the camera is detected.

The detection process could last for up to 10 seconds, so ensure both your camera, NVR, and router are all turned on and working.

If the setup is a success, the camera’s live feed will appear within the “Camera” section.

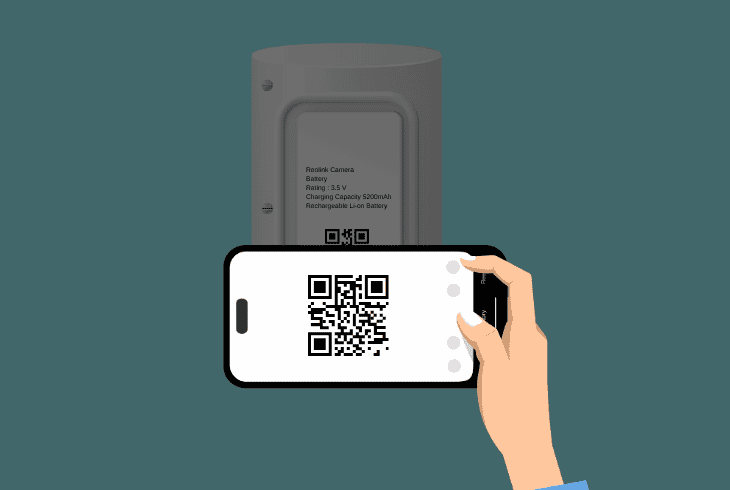

Method #2 Add Cameras Manually

Instead, you can manually scan the QR code on the rear panel of the Reolink camera, if the device doesn’t appear during the LAN setup.

Here’s how:

1. Open the Reolink app and tap on the plus symbol.
2. Proceed to scan the QR code on the camera panel.
3. Follow the remaining instructions to finish the setup.

If the sticker on the camera is blurry or won’t get recognized by the camera, press on “Input UID/IP” and input the combination from the camera’s sticker.

Similarly to the automatic setup, your camera’s profile will be created automatically.

Reolink NVR Wi-Fi Connection – Got Questions?

Now that you know how to connect Reolink NVR to WiFi, you may be wondering:

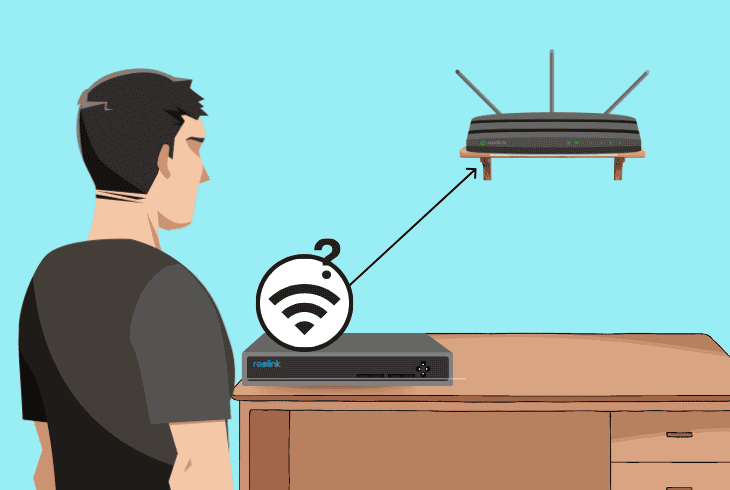

Can I Use Wi-Fi On My Reolink NVR?

Wi-Fi is not among the supported functions of the Reolink NVR. It can only connect with your network over Ethernet.

NVR Has No IP in the “DHCP” List?

If the NVR is not detected by the network, check if the Ethernet cable is secured and test on an alternative router port.

Why is Reolink App Not Detecting My Cameras?

Ensure that:

• Your cameras are powered on and running.
• The cameras are within 100 feet of the router.
• The network router and the NVR are working.
• Update the Reolink app to the most current OS.
• Clear the cache of the Reolink app or reinstall it.

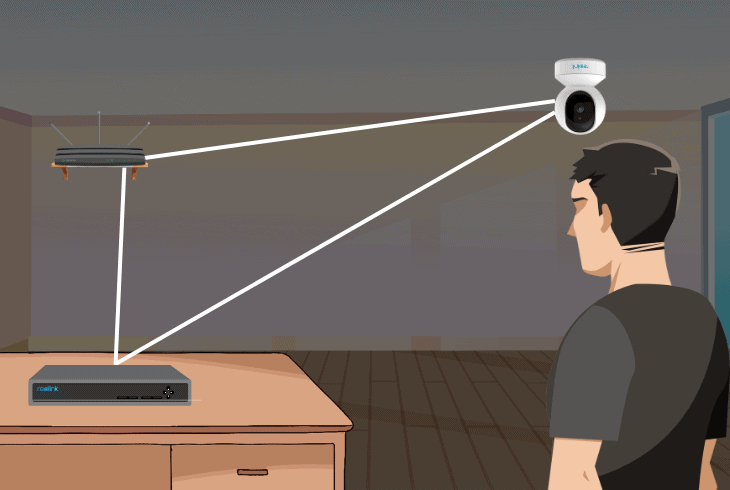

Do I Need Ethernet For the Reolink NVR?

The Reolink NVR can be used in two types of setup:

• Offline setup: No internet is required, but the cameras must be wired via a PoE connection to the NVR’s LAN ports.
• Online setup: Internet is required and the Reolink cameras can be connected over Wi-Fi to the NVR.

Viewing Camera Live Feed Remotely?

Open the Reolink mobile app on your smartphone and navigate to the “Live” tab. There, you can view the live broadcast of each wirelessly connected Reolink camera.

In case of Reolink camera issues, you can contact customer support for more help.
