VTech Baby Monitor Not Charging? (Let’s Fix It Fast)
Looking for the reason why your VTech baby monitor not charging? This guide will help you!
After in-depth research, we’ve discovered that charging issues with the VTech baby monitor are often because of defective equipment, insufficient A/C current, or obstructions in the port.
Hence, we recommend the following counter-measures:
For the full details, proceed with the guide!
How to Fix VTech Baby Monitor Not Charging in Easy Steps?
The baby monitor has reached maximum battery whenever the battery icon turns solid and stops blinking or flashing.
If the indications of the LED aren’t consistent, thus, it goes off and comes back on abruptly, this is definitely a type of fault related to VTech charging equipment.

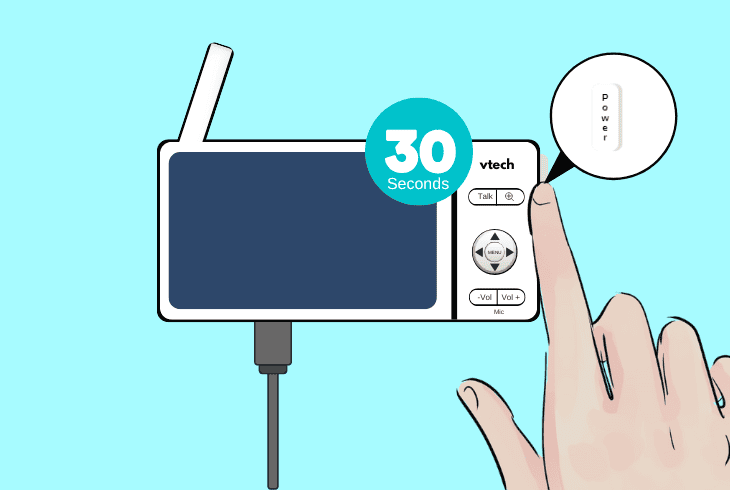

1. Force Restart the VTech Baby Monitor
If there has been a minor failure with the startup of the baby monitor, you can jump-start the internal battery by conducting a forced reboot.
The procedure involves using the charging equipment to drain the residue electricity from the baby monitor’s battery and then holding the “Power” button for a prolonged period of time.
Follow these steps to force restart the VTech baby monitor:
- Connect the prong power adapter to VTech’s port.
- Press the “Power” button once to shut down VTech.
- Hold the “Power” for 30 seconds to drain the power.
- Disconnect the baby monitor from the power supply.
- Press the “Power” button once to power the monitor.
Tip: Verify that the power button is not stuck or defective!
2. Alter VTech’s Electrical Power Source
A defective power source is the main culprit in the majority of charging fault cases, regardless of the battery-powered device you’re having trouble with.
Hence, the best next step is to attempt charging your VTech baby monitor through an alternative outlet with demonstrated functionality.
How to Verify Power Outlet Works?
Perhaps the simplest way to tell if an outlet works or not is to connect any other low-voltage electrical appliance in your home.
That could be a shelf lamp, a kitchen appliance, or even your phone’s charger, just to determine whether the power flow from your socket is working.
If the connected appliances keep losing power repeatedly or refuse to work entirely, it’s best to get in touch with a technician, unless you’re an experienced professional.
Important: Remove Third-Party Devices!
We know that charging the baby monitor in a separate outlet could be challenging, especially if you have a considerable amount of other appliances.
However, we recommend disconnecting all types of power strips, dividers, and cord extenders from the setup of your VTech monitor.
If nothing helps, keep reading…

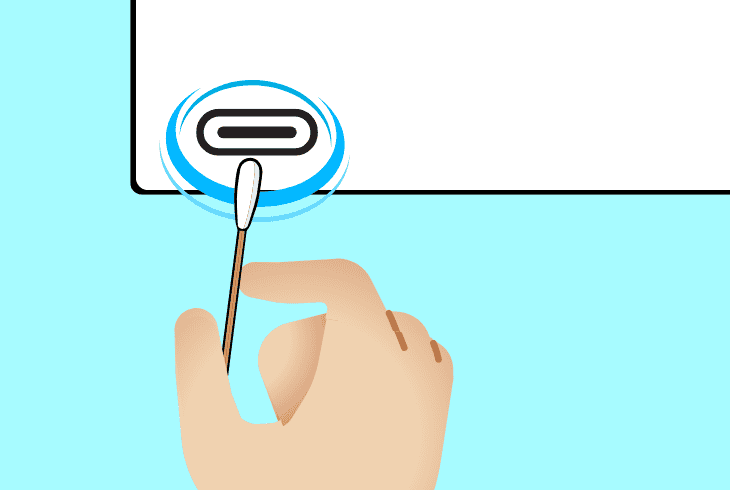

3. Inspect VTech’s A/C Charging Port
The VTech baby monitor not charging can be caused by an obstruction of the charging port as a result of positioning the device in a dusty or enclosed position.
Apart from the possibility of a charging port obstruction, the accumulation of dust or debris could also lead to overheating.
Follow these steps to inspect the parent unit’s charging port:
- Disconnect the charging adapter from the back of your monitor.
- Apply rubbing alcohol to a small cotton swab or an ear stick.
- Insert the ear stick and perform circular movements ongoingly.
- Use a different earstick if there’s still dust or debris within the port.
Important Note: Wait for the charging port to fully dry out before inserting the charger!

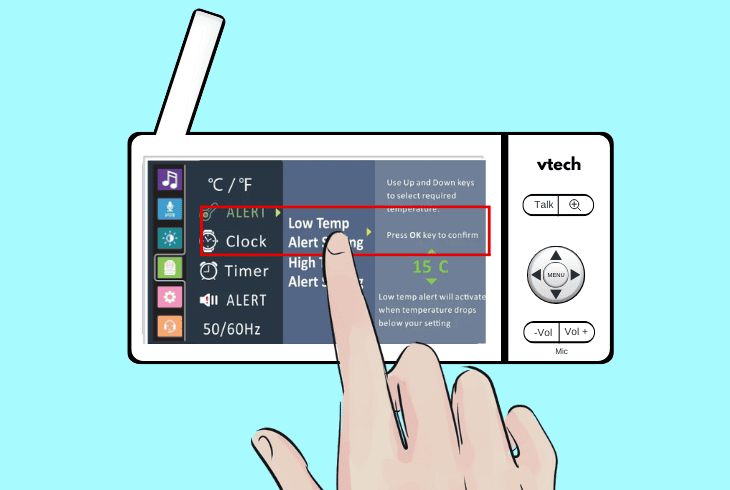

4. Check the Baby Monitor’s Temperatures
Overheating is another existing factor that must be considered, especially if the baby monitor is plugged into the charger consistently.
So, prolonged overheating of the baby monitor’s hardware and battery could lead to irreversible damage as well as serious impairment to your battery unit.
The simplest way to tell if the baby monitor overheats is by the warmth of the rear panel.
- The hotter the rear panel feels to the touch, the more likely it is for your VTech monitor to overheat.

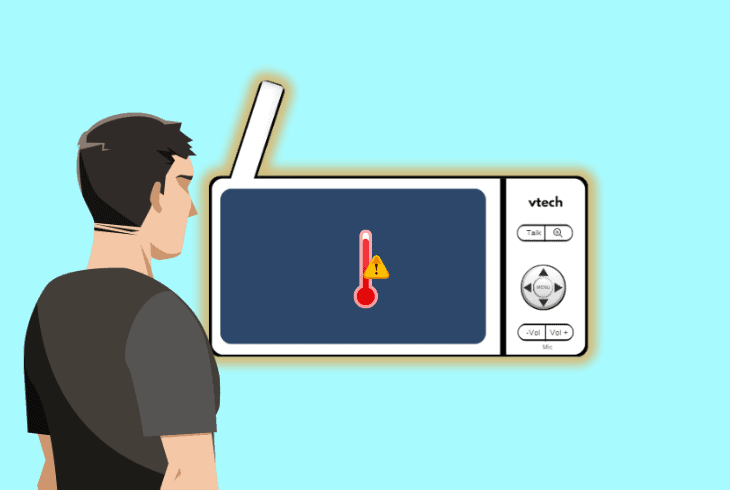

4.1 What Causes Overheating of VTech Monitor?
Similar to other devices, the VTech baby monitor’s temperature is viable to:
- Improper ventilation of the baby monitor’s surroundings.
- Excessive heat is produced by nearby heat conductors.
- Clogged ventilation openings on the VTech monitor unit.
- Improper connection of your baby unit’s internal battery.
4.2 How to Prevent Overheating of the VTech Monitor?
Here are the best ways to maintain a cool temperature of your VTech:
- Ensure the baby monitor is free of any type of dust or debris.
- Position the monitor in an open space, away from electronics.
- Dislocate heat conductors elevating the VTech’s temperature.
Alert: If the baby monitor is overheating, unplug it from the charger immediately!

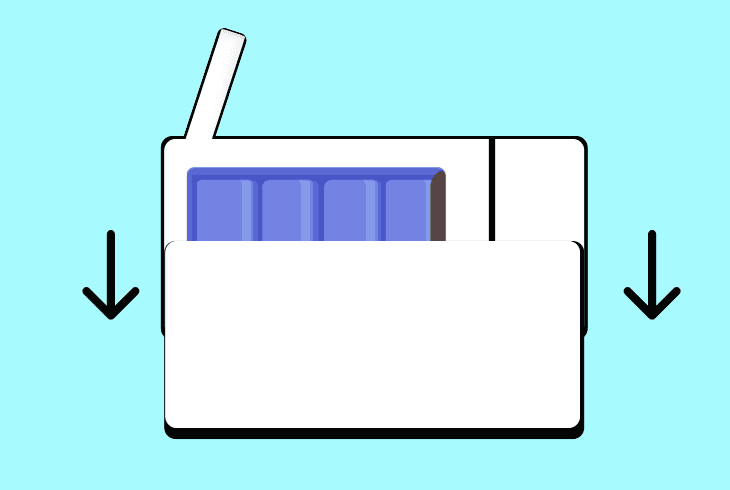

5. Reseat the Baby Monitor’s Battery
There’s a quick and effective resolution to installation issues with your baby monitor’s battery, especially if you’ve disassembled the device in the past.
The parent unit has a 3.7V 950mAh (35Wh) rechargeable battery without an external adapter for connection, so it’s easy to reset it.
Here’s how to remove the VTech parent unit’s battery:
- Disconnect the parent unit from the A/C charging equipment.
- Press down on the battery compartment’s cover on the back.
- Ensure the “THIS SIDE UP” label faces up during the removal.
- Carefully lift up the battery to remove it from the baby monitor.
- Hold the “Power” button on the back of the VTech parent unit.
- Reinsert the battery unit and reinstall the compartment’s cover.
While disassembled, you can use a voltmeter to test the battery, by connecting the positive and negative fields to the adapter.
If the battery happens to be defective, you can buy a brand-new VTech baby monitor battery replacement through VTech’s official website at an affordable price.
6. Reset the Baby Monitor’s Settings
If you’ve reached so far into the guide, it’s unclear whether the VTech baby monitor battery not charging or there is a hardware or software-related bug.
Well, a simple factory reset can be a game-changer if the charging issues are caused by a problem with the baby monitor’s system.
Alert: All of your baby monitor’s settings will be reset to default or factory values!
Here’s how to easily restore the parent unit to factory defaults:
- Ensure the baby monitor is connected to the charger.
- Hold the “PAIR” key until the device produces a beep.
- Press the “PAIR” key 5 times additionally to initiate.
- Wait until the VTech baby monitor finalizes the reset.
Note: Do not interact with the baby monitor for the longevity of the factory reset, as it may last for a full 60 seconds in some cases.

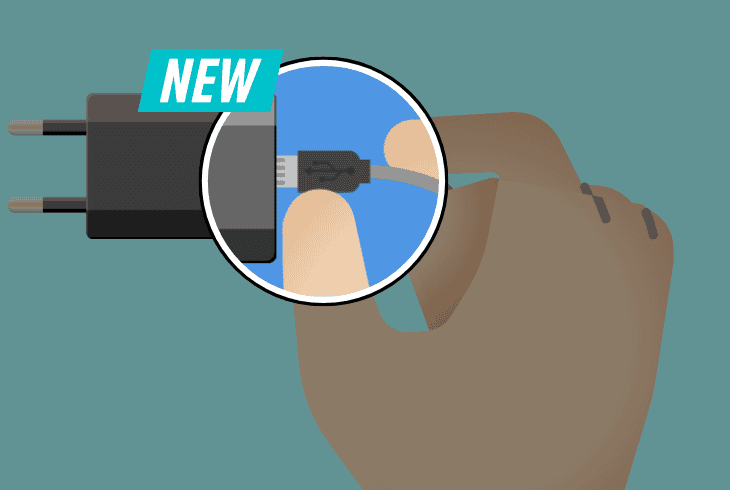

7. Replace VTech’s Charging Equipment
If neither removing the battery nor performing a factory reset had any effect on the baby monitor, then the last thing left to check is the charging equipment.
All the VTech baby monitors use an undetachable 5V UL adapter with a DC plug, so finding a replacement shouldn’t be too difficult.
If you have an adapter that uses the same connectors in your household, feel free to connect the VTech baby monitor and check the charging status.
Typically, it’s safe to charge your baby monitor with a lower power adapter but always be mindful if the charger uses a higher voltage.
