Pioneer radio Apple CarPlay not working, and you’re worried? Worry no further and read!

So, Pioneer car stereos are known for their seamless integration with Apple’s CarPlay, and we expect everything to go smoothly.

Well, that’s not always the case and if you’re facing issues with setting up CarPlay on your Pioneer radio, this complete guide will help you in fixing faults.

If your Pioneer radio CarPlay is not working, check the compatibility, update the firmware of the radio and your Apple device, and reset the connection.

Also, configure the settings of your iOS device and reset your stereo to defaults.

Check Pioneer Radio’s CarPlay Compatibility!

check pioneer radio’s carplay compatibility

The first and most important step is to check whether your Pioneer car stereo is compatible with Apple’s CarPlay.

You can check which model of Pioneer radio you have by looking at the rare panel, typically located in the upper-left corner

When you know which model you’ve got, check whether it’s compatible with Apple’s CarPlay!

Pioneer Radios Compatible with Apple’s CarPlay
Note: If you don’t see your Pioneer Radio here, chances are that CarPlay is not supported!

Pioneer Radio Apple CarPlay Not Working – Complete Guide!

The guide below contains working and tested solutions with in-depth explanations and steps:

1. Update Pioneer Car Radio Firmware

update pioneer car radio firmware

If you have an Apple CarPlay-enabled Pioneer car stereo, but the feature is not working, you need to update your radio to the latest firmware.

The upgrade procedure is not that simple, so we strongly recommend following the instructions closely with caution and not missing steps!

Step #1 Format Your USB Drive

  1. Acquire a USB flash drive with at least 4 GB of storage.
  2. Plug your USB drive into a USB port of a Windows PC.
  3. Open “File Explorer” and from the left go to “This PC.”
  4. Under “Devices and Drives” right-click your USB drive.
  5. Then, from the settings that show up, click on “Format…”
  6. Next, expand the “File system” tab and set it to “FAT32”.
  7. Click on “Start” and wait until the USB drive is formatted.
  8. Warning: This will erase everything from your USB drive.

Step #2 Upload the Firmware File

  1. When your USB drive is formatted, go to Pioneer Updates.
  2. In the “Product Model Number” field, fill in the radio model.
  3. Next, click “Software & firmware downloads” on the bottom.
  4. Expand the arrow and click on “Download firmware update.”
  5. When downloaded, extract the files in a new folder on the PC.
  6. Upload the folder to the empty and formatted USB flash drive.
  7. Warning: There mustn’t be other folders in the USB flash drive.

Step #3 Update the Pioneer Radio

update the pioneer radio
  1. Disconnect all wireless devices from your Pioneer car stereo.
  2. Connect the USB flash drive to the USB port of your Pioneer.

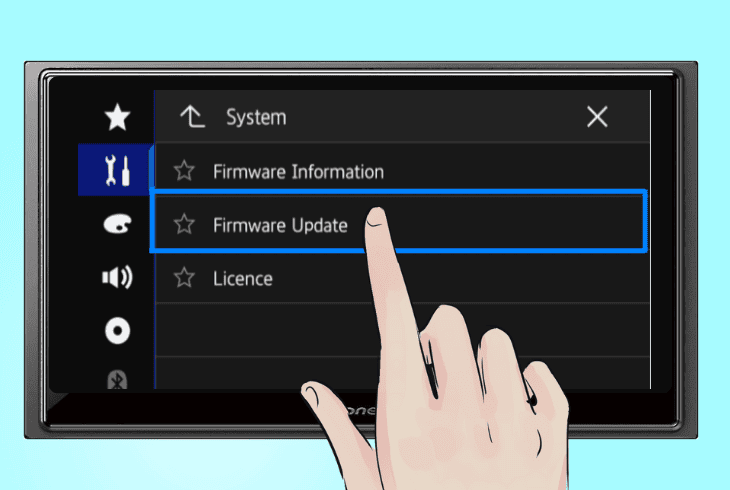

  3. Go to the Menu → System Information → Firmware Update.
  4. Read the warnings and click on Start to begin the installation.
  5. Do NOT disconnect the USB drive during the firmware update.

When you have the firmware installed, test whether CarPlay is now working!

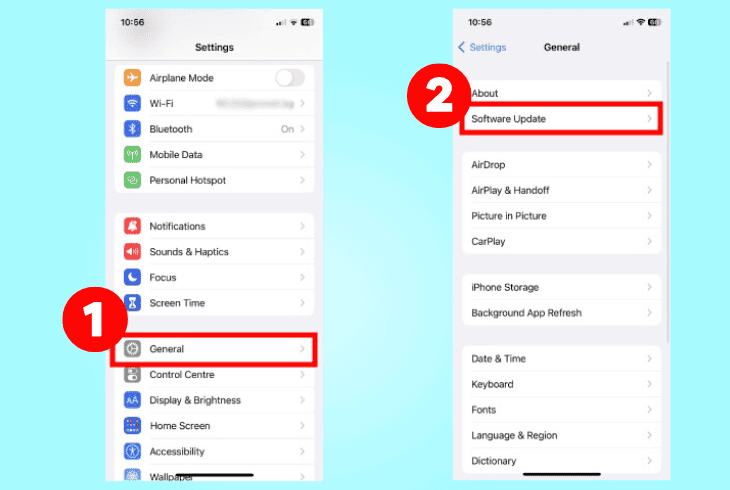

2. Upgrade your iOS Device’s Firmware

Now that your Pioneer radio is up-to-date, it’s time to upgrade your Apple device as well, since there are known issues with CarPlay on outdated iOS.

If you’re running iOS 16, it’s possible that CarPlay won’t work, so updating the Apple device to iOS 17 must be done as soon as possible.

upgrade your ios device’s firmware

Here’s how to upgrade your Apple device in easy steps:

  1. From the home screen go to “Settings.”
  2. Then go to General → Software Update.
  3. Wait for the “Checking for Updates” screen.
  4. Lastly, tap on “Download and Install” to start.

When both your Pioneer car radio and Apple device are up-to-date, test whether CarPlay works!

3. Reboot your Apple Device & Vehicle

A quick and easy step, now that you’re ready with updating, is to reboot both your Apple device and Pioneer car stereo.

This will refresh the operating services of both devices, hopefully fixing the CarPlay problem and finally allowing you to connect.

  • To reboot your vehicle, stop the power (flip the starter), and verify the engine is off.
  • To reboot your Apple device, hold the Power button and slide right to “Power Off”.

Alternatively, restart your Pioneer radio by pressing the “Power” button, typically located on the left-side panel.

If your Pioneer car stereo model doesn’t have a power button, you can look for a restart option in the menu.

Important: If your Pioneer car stereo works when the engine is off, turn off the marker lights!

4. Reset your Pioneer Radio to Defaults

reset your pioneer radio to defaults

The next step is to reset your Pioneer radio to factory defaults, which is one of the most effective solutions when CarPlay won’t connect.

There are a variety of Pioneer radio models, and most of them reset in different ways, so we recommend following the tips below to get the reset done.

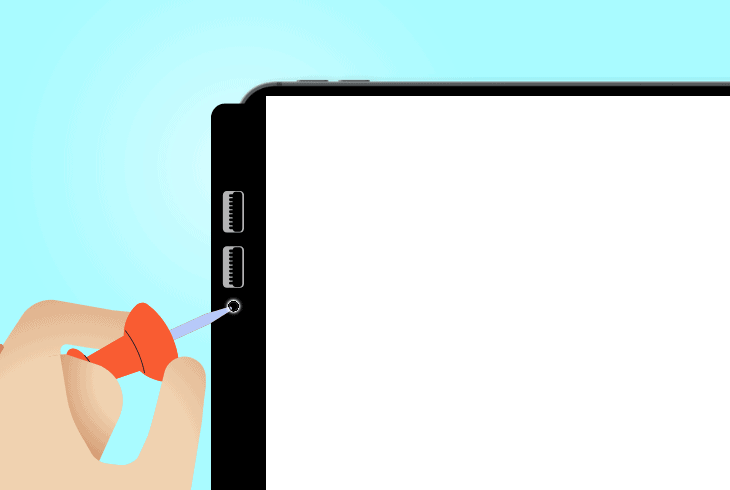

  • Check if there is a reset pinhole on the rare panel and if yes, insert a thin and sharp object and hold the reset button for about 10 seconds.
  • Alternatively, tap on the Cogwheel at the top-right, go to “System” and select “Restore Settings” to factory reset your Pioneer car stereo.
  • If your Pioneer car radio has an “SCR” (Source) button, hold it to enter the menu and locate the “Factory Reset” option in the settings.
Tip: If you have trouble locating the reset options on your Pioneer car stereo, Google the exact model and locate the user manual for exact instructions.

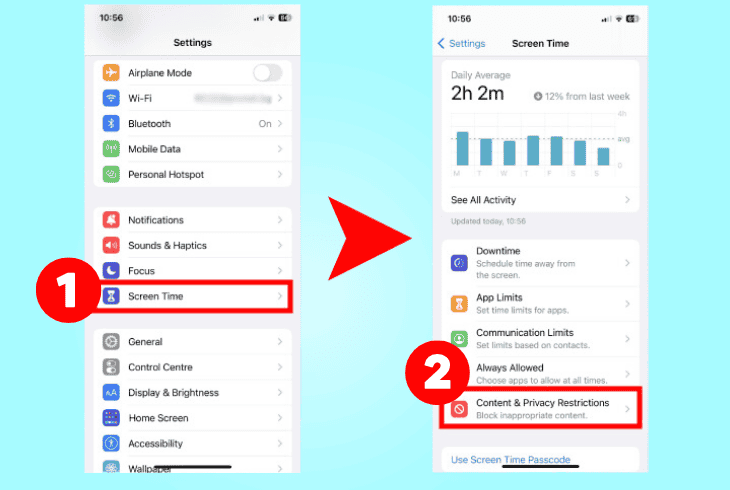

5. Remove CarPlay Content Restrictions

remove carplay content restrictions

If your Pioneer Apple CarPlay not working, your iPhone may have some restrictions, which disable the feature and prevent the connection.

Thus, it’s important to reach within your Apple device’s settings and verify that your CarPlay feature is not blocked by the iOS system.

Here’s how to lift Apple CarPlay restrictions quickly:

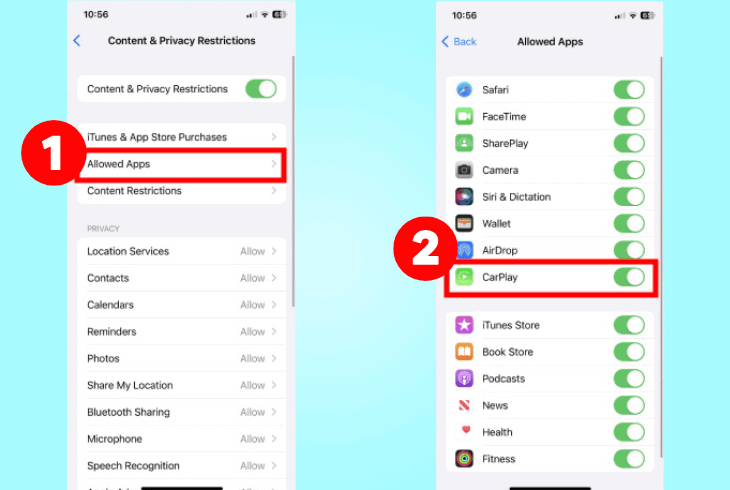

  1. Go to the Settings and enter the “Screen Time” tab.
  2. From there, select “Content & Privacy Restrictions.”
  3. Tap “Allowed Apps” and verify that “CarPlay” is enabled.
allowed apps carplay

If CarPlay was not enabled, that explains why you weren’t able to set it up with your Pioneer car stereo, so go ahead and try again.

If the process keeps failing, continue reading the instructions!

6. Reset the Wireless/Wired Connection

If you’re still unable to set up Apple’s CarPlay with your Pioneer car stereo, you must check the wireless or wired connection.

Important: Pioneer Wireless Support:

Not all CarPlay-enabled Pioneer radios support wireless pairing.

You can only set up CarPlay to AVH-Z9100BT, AVH-Z9100DAB, AVIC-Z910DAB, AVIC-Z710DAB(-C), AVIC-Z810DAB(-C), and AVIC-Z610BT(-C).

So, if you don’t have any of these models, you must use a wired connection.

How to Reset Wired CarPlay Connection?

how to reset wired carplay connection
  1. Unplug the USB-A to the USB-C or lighting cable.
  2. Keep the cable unplugged for ~60 seconds.
  3. Reconnect the USB wire tightly and securely.
Tip: If you have a replacement wire, try connecting the Apple device to the Pioneer radio with it!

How to Reset Wireless CarPlay Connection?

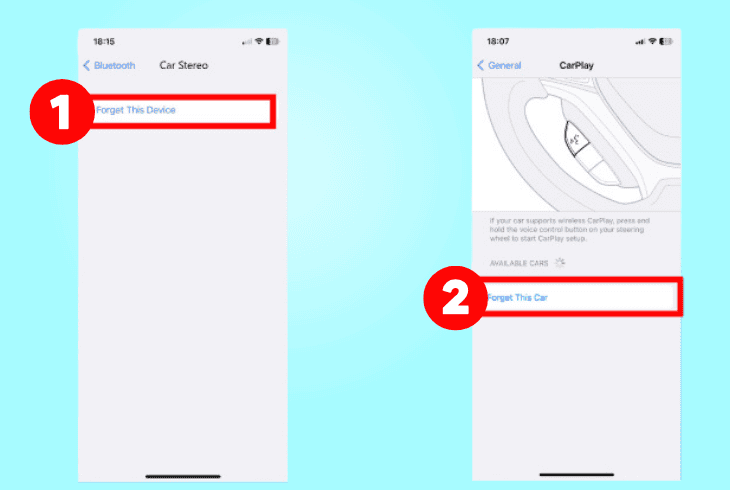

To reset the wireless connection you’ll need to forget and re-pair both the Bluetooth stereo profile and the remembered CarPlay vehicle.

Here are the steps:

  • Forget the Bluetooth Profile: Go to Settings → Bluetooth → Select Stereo → Forget This Device.
  • Forget the CarPlay Vehicle: Go to Settings → General → CarPlay → Select Vehicle → Forget this Car.
how to reset wireless carplay connection
Note: If you’re using only a wireless connection, we strongly recommend trying via USB cable!

7. Troubleshoot your Apple iOS Device

So, if you’re unable to set up CarPlay with your compatible Pioneer car stereo, there are a few methods you should undertake to troubleshoot your iOS device.

These methods are proven to fix CarPlay-related problems, so grab your Apple device, and follow the methods consecutively:

Method #1 Restart Wi-Fi and Bluetooth

The Wi-Fi and Bluetooth features are essential for Pioneer CarPlay functionality, so go to the iOS settings and toggle On and Off both features.

Method #2 Verify that “Siri” is Enabled

verify that “siri” is enabled

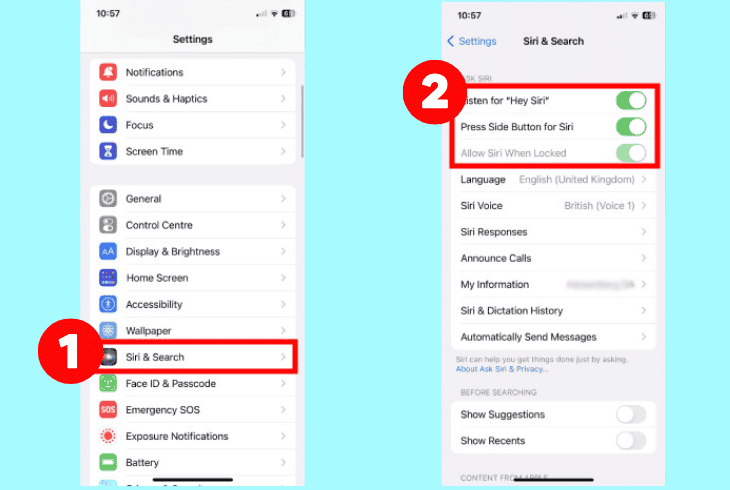

Apple’s Siri voice assistant must be enabled for CarPlay to function, so go to Settings, tap on Siri & Search, and verify “Listen for “Hey Siri” is enabled.

Additionally, toggle on the “Press Side Button for Siri” and “Allow Siri When Locked.”

Method #3 Turn On the Airplane Mode

The Airplane mode will refresh all networking services on your iPhone, so access the quick menu and enable Airplane mode for about 60 seconds.

Method #4 Reset iOS Network Settings

Sometimes CarPlay won’t work with Pioneer Radio due to networking conflicts on your Apple device so resetting the settings should help.

Here are the Apple network reset instructions:

  1. Go to the “Settings” and “General.”
  2. Press “Transfer or Reset [Device].”
  3. Press on “Reset” at the very bottom.
  4. Lastly, tap “Reset Network Setting.”

If this doesn’t work continue with method #5…

Method #5 Reset the iPhone to Default

If CarPlay doesn’t function on your Pioneer radio, it’s time to factory reset your iPhone, but we strongly recommend creating an iCloud Backup beforehand.

reset the iphone to default

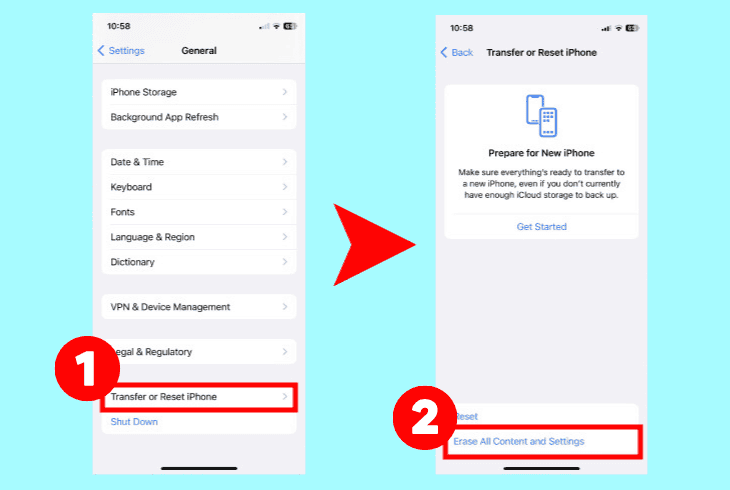

When you have an iCloud backup, reset your iPhone to defaults:

  1. First, go to Settings and enter the “General” tab.
  2. On the bottom, tap “Transfer or Reset [Device]”.
  3. Then, tap on “Erase All Content and Settings.”

That’s everything you can try. If this doesn’t work, contact Apple or Pioneer support!

Quick Recap

If Pioneer radio Apple CarPlay not working, upgrade your stereo’s and iOS firmware, reboot both devices and factory reset the radio.

If this doesn’t work, verify that CarPlay is not restricted, reset the wired/wireless connection, and troubleshoot your Apple iOS device.
