Best Settings For Lorex 4K Camera (For Crisp Videos!)

If you’re looking for the absolute best settings for Lorex 4K camera to get crystal clear video recording, don’t look further and continue reading.

This quick guide will teach you how to access your Lorex 4K camera settings and how to adjust each and every setting that affects the video quality.

We’ll also show you how to match the output monitor resolution with the Lorex camera recording capability, so you can not only record, but also observe the highest-quality video that is possible.

Starting with the most important…

How to Access Lorex Camera Settings:

Whether you are using wired or wireless Lorex 4K cameras, accessing the settings is possible through several interfaces.

Whatever option you decide to use to access your Lorex 4K camera options, we’ll next guide you through the best settings for crystal clear video and more…

Best Settings for Lorex 4K Camera: The Complete Guide!

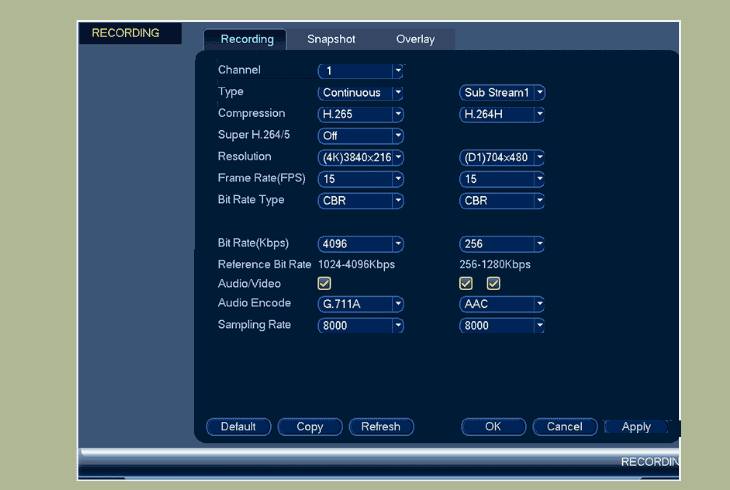

To configure the recording quality, follow these steps:

1. In your NVR’s interface, go to the Live View.
2. Then, right-click to access the Quick Menu.
3. From the Main Menu, go to “RECORDING”.
4. Select the “Recording” tab on the top panel.

Then you’ll reveal a rather complicated menu full of options, some of which you may not fully understand, but don’t worry, we’ll walk you through all of them.

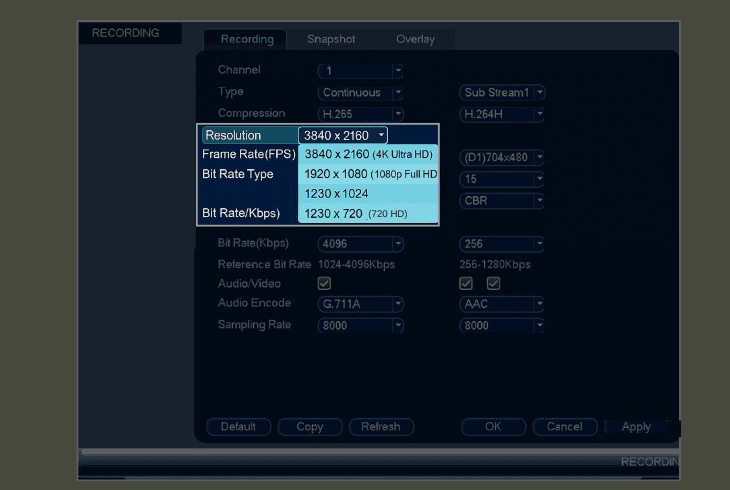

1️⃣Use the Highest Resolution:

The resolution determines the number of pixels that compose each frame of your video footage.

This is the key factor in how sharp and detailed your recordings appear—essentially, it’s what makes your video clear, crisp, and pronounced.

The higher the resolution is, the more pixels there are, which ultimately results in a sharper, defined, and clearer image.

This is especially critical for identifying important details such as faces, license plates, or small movements in your security footage.

Available Options:

For Highest Quality:

For the clearest and most detailed video recordings, choose 3840 × 2160 (4K Ultra HD).

Just ensure your storage and network can handle the larger file sizes that originate with a 4K video.

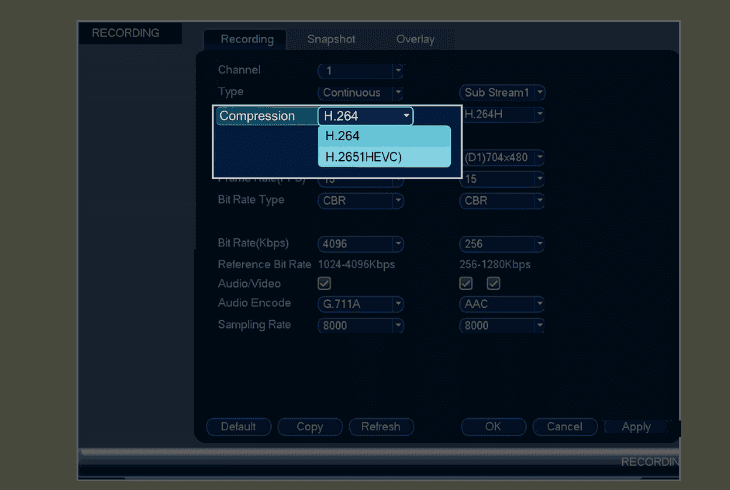

2️⃣Optimize Video Compression:

The compression algorithms reduce the size of video files while preserving as much visual quality as possible.

In a nutshell, compression works by removing unnecessary bits from the image that stay stationary throughout your recordings.

The compression removes redundant data so you can store more footage without losing any of your broadcast clarity.

This is vital for long-term storage and to avoid overwhelming the network.

Available Options:

Best for Highest Quality:

Select the H.265 if your NVR supports it. H.265 allows you to keep the highest possible video quality while using less storage space.

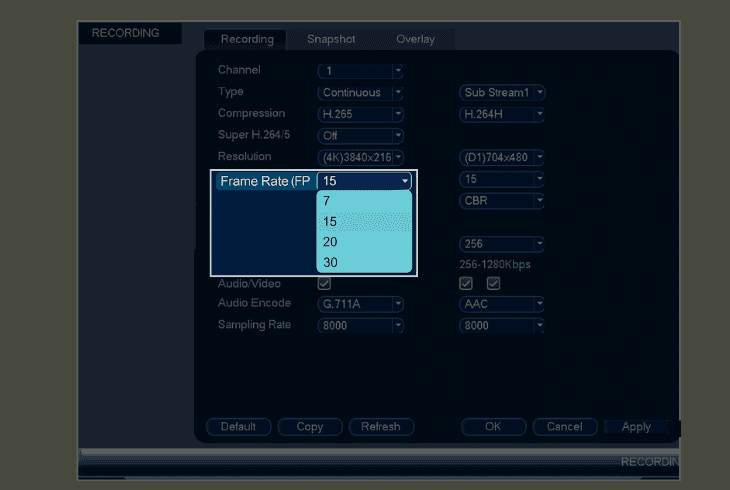

3️⃣Use the Smoothest Frame Rate:

The frame rate, or “FPS” in short, is all about how many pictures (or frames) your camera snaps every single second.

This directly impacts how smooth your video looks when you play it back.

A higher frame rate means smoother motion, which is a big deal when you need to catch quick movements or spot suspicious activity in your footage.

Available Options:

Best for Highest Quality:

If your recorder can handle it, increase the frame rate up to 30 FPS for super-smooth, realistic video.

However, if your 4K system is limited to 15 FPS, it’s still solid for high-quality surveillance.

4️⃣ Maximize the Bit Rate for Detail:

The Bit Rate settings control how much data your camera uses to record each second of video.

This covers both the amount of data (measured in Kbps) and whether that data flows steadily (CBR) or adjusts to what’s happening in the scene (VBR).

These choices play a huge role in how clear your video looks, how much storage it uses, and how well your footage holds up.

This is vital, especially when there is a lot of action happening.

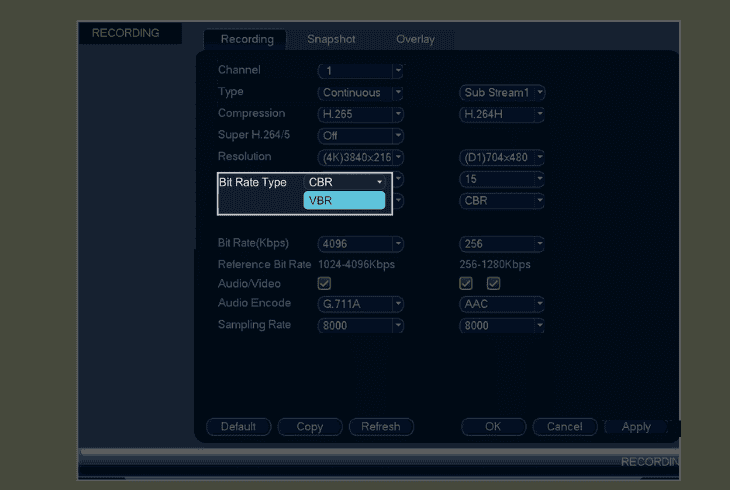

Bit Rate Type | Available Options:

ZontSound recommends choosing CBR for dependable, crystal-clear video, especially when there’s a lot of motion or detail to capture.

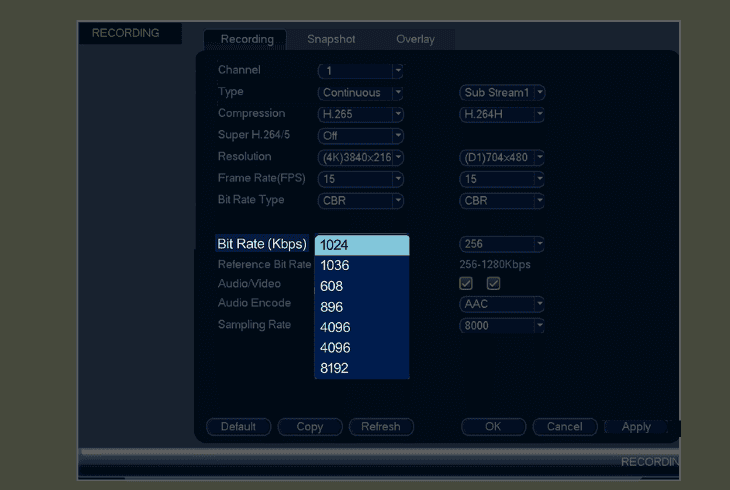

Bit Rate (Kbps) | Available Options:

We recommend increasing the bit rate to the maximum your system allows, that is usually 8192 Kbps for 4K setups, to ensure that every frame is fully packed with as much detail as possible.

How To Change Recorder Display Resolution:

You now know which are the best settings for Lorex 4K camera, so let’s learn how to tweak your recorder’s display settings to match your camera capabilities.

⚠️ Warning: If your TV monitor doesn’t support 4K, and you choose a 4K resolution, your monitor will likely lose the video signal, so refer to this troubleshooting guide to reset your recorder to the default.

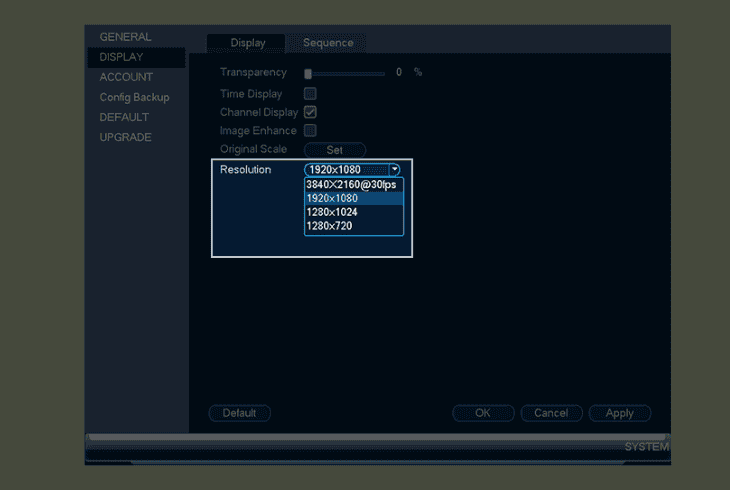

Follow these steps to set the correct display resolution for your TV monitor:

1. First, you need to navigate to your Lorex recorder interface.
2. Then go to Main Menu → Settings → System → Display.
3. You must select a resolution that your TV monitor supports.

• 3840 x 2160 (4K): Select this resolution if you have a 4K-compatible TV monitor for the sharpest, most detailed output.

• 1920 x 1080 (1080p Full HD): Select this for most modern TVs, as 1080p is now the standard for many monitors.

• 1280 x 1024: Choose this mid-level resolution if you’re using an older computer monitor with a rectangular screen.

• 1280 x 720 (720p): Select this for the most basic displays or older monitors that don’t support any higher resolutions.

Also, double-check your TV monitor’s specifications to confirm which resolutions are supported.

Setting a resolution higher than your monitor can handle will result in no image being displayed.

Note: The exact steps may vary slightly depending on your Lorex recorder model.
